TANDBERG DATA
SLR4DC (INTERNAL)
| Device Type | Tape Drive |
| Interface | SCSI-W |
| Format | QIC-2GB, QIC-1000, QIC-525, QIC-150, QIC-24(Read only) |
| Sustained Transfer Rate | 36MB/Min |
| Size | 5.25 in. half height |
| View | Top |

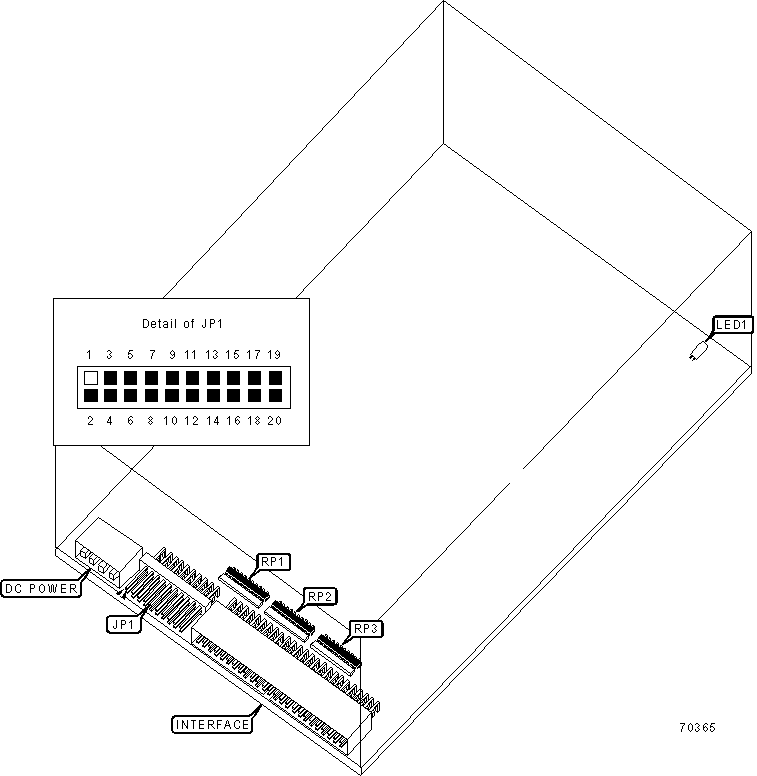

USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter. | JP1/Pins 1 & 2 |
Unidentified |
| » | Factory configured - do not alter. | JP1/Pins 3 & 4 |
Unidentified |
| » | Factory configured - do not alter. | JP1/Pins 5 & 6 |
Unidentified |
| » | Factory configured - do not alter. | JP1/Pins 7 & 8 |
Unidentified |
| » | Factory configured - do not alter. | JP1/Pins 9 & 10 |
Unidentified |
| » | Factory configured - do not alter. | JP1/Pins 11 & 12 |
Unidentified |
| » | Factory configured - do not alter. | JP1/Pins 19 & 20 |
Unidentified |
DRIVE SELECT ID |
||||
Drive ID |
JP1/Pins 13 & 14 |
JP1/Pins 15 & 16 |
JP1/Pins 17 & 18 |
|
0 |
Open |
Open |
Open |
|
1 |
Open |
Open |
Closed |
|
| » | 2 |
Open |
Closed |
Open |
3 |
Open |
Closed |
Closed |
|
4 |
Closed |
Open |
Open |
|
5 |
Closed |
Open |
Closed |
|
6 |
Closed |
Closed |
Open |
|
7 |
Closed |
Closed |
Closed |
|
MANUFACTURERS RECOMMENDED MEDIA |
||
Tape |
Capacity Without Compression |
Capacity With Compression |
| QIC-150 | 150MB | N/A |
QIC-525 |
525MB |
N/A |
QIC-1000 |
1.2GB |
N/A |
QIC-2GB |
2.5GB |
5.0GB |
TERMINATING RESISTOR CONFIGURATION |
|||
Function |
RP1 |
RP2 |
RP3 |
Termination enabled |
Terminator installed |
Terminator installed |
Terminator installed |
Termination disabled |
Terminator not installed |
Terminator not installed |
Terminator not installed |
DIAGNOSTIC LED |
|||
| LED | Color |
Status | Condition |
| LED1 | Off |
Off | No drive Activity / No cartridge loaded |
| LED1 | Green |
On | No drive Activity / cartridge loaded |
| LED1 | Green |
Blinking | Drive is active |
| LED1 | Amber |
On | Media or hardware error has occurred |
| LED1 | Green |
On | New cleaning cartridge needed. (While cleaning) |
| LED1 | Red |
On | Fatal Error |
