MAYNSTREAM 2000DAT (INTERNAL)
| Device Type | Internal Tape Drive |
| Interface | SCSI-1, SCSI-2 |
| Format | DAT |
| Sustained Transfer Rate | 183KBPS |
| Size | 5.25 in. half height |

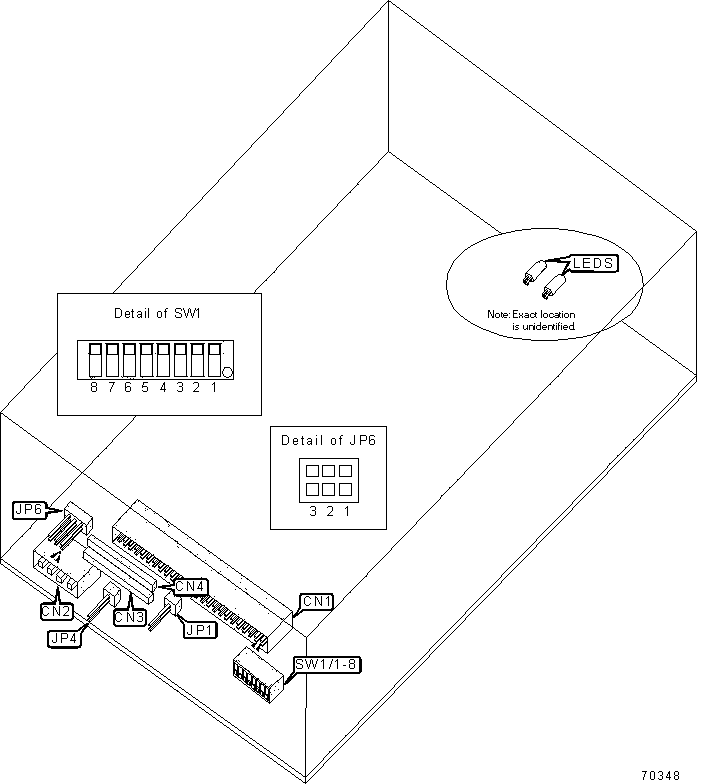

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| SCSI connector | CN1 |
Terminator | CN3 |
| Power connector | CN2 |
Terminator | CN4 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | JP1 | Unidentified |
| » | Factory configured - do not alter | JP4 | Unidentified |
| » | Factory configured - do not alter | JP6 | Unidentified |
| » | SCSI 2 mode selected | SW1/4 | On |
| SCSI 1 mode selected | SW1/4 | Off | |
| » | Parity check disabled | SW1/5 | Off |
| Parity check enabled | SW1/5 | On | |
| Data compression disabled | SW1/6 | On | |
| Data compression enabled | SW1/6 | Off | |
| » | Factory configured - do not alter | SW1/7 | Off |
| » | Power-on self-test mode disabled | SW1/8 | Off |
| Power-on self-test mode enabled | SW1/8 | On | |
DRIVE SELECT ID |
||||
Drive ID |
SW1/1 |
SW1/2 |
SW1/3 |
|
| » | 0 |
Off | Off | Off |
1 |
On | Off | Off | |
2 |
Off | On | Off | |
3 |
On | On | Off | |
4 |
Off | Off | On | |
5 |
On | Off | On | |
6 |
Off | On | On | |
7 |
On | On | On | |
MANUFACTURERS RECOMMENDED MEDIA |
|
Tape |
Capacity |
| DAT Data Cassette | 1.3GB |
| DAT Data Cassette | 2.0GB |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| Amber | Amber | On |
Drive is reading/writing the tape |
| Amber | Amber | Off |
Drive is not reading/writing the tape |
| Amber | Amber | Blinking |
Hardware fault has occured or dew was detected |
| Green | Green | On | Cassette is inserted in the drive |
| Green | Green | Off | Cassette is not inserted in the drive |
| Green | Green | Slow Blinking | Cassette is inserted, but generates excessive errors |
| Green | Green | Fast Blinking | Drive could not write to tape correctly |
