MAYNARD ELECTRONICS
MAYNSTREAM 2200HS+
| Device Type | External Tape Drive |
| Interface | SCSI |
| Format | Unidentified |
| Sustained Transfer Rate | 246KBPS |
| Size | 5.25 in. full height |

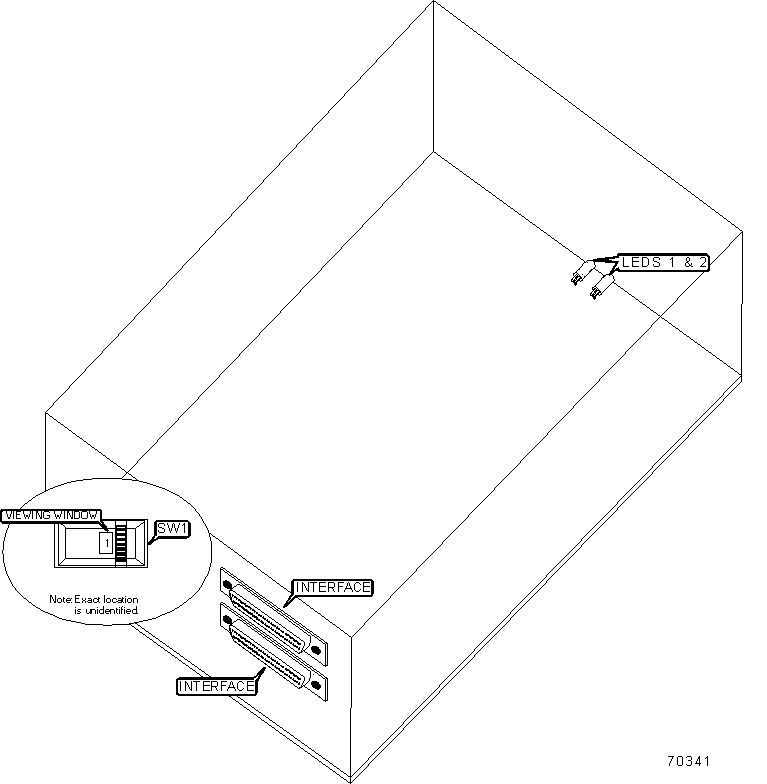

| View | Top |
D RIVE SELECT ID |
| Note: SCSI ID is selected by activating SW1 until the desired number is displayed in the viewing window. |
MANUFACTURERS RECOMMENDED MEDIA |
|
Tape |
Capacity |
| 8mm Digital Data Cassette | 2.2GB |
| Exatape 112M Data Cartridge | 2.2GB |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| LED1 | Unidentified | On |
Drive is plugged in, turned on, and tape is installed |
| LED1 | Unidentified | Off |
Drive is not plugged in, turned on, or has tape installed |
| LED2 | Unidentified |
On |
Tape is being accessed |
| LED2 | Unidentified | Off |
Tape is not being accessed |
Note: Unable to distinguish between LED1 and LED2. |
|||
