IMATION
ITL 1210
| Device Type | Internal/External Tape Drive |
| Interface | SCSI-2 |
| Format | QUARTER INCH |
| Sustained Transfer Rate | Unidentified |

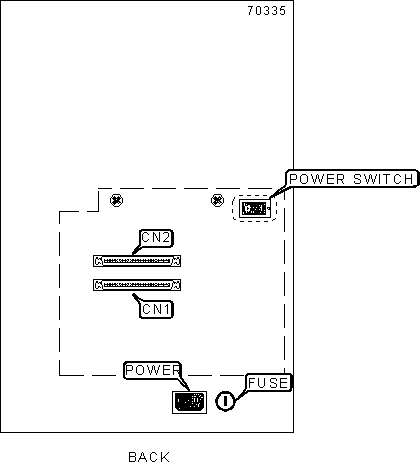

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Ultra SCSI connector | CN1 |
Ultra SCSI connector | CN2 |

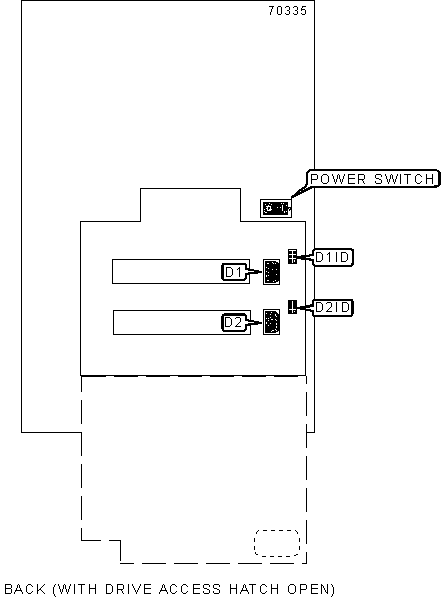

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Drive 1 DC power | D1 |
Drive 2 DC power | D2 |
| Drive 1SCSI ID connector | D1ID |
Drive 2 SCSI ID connector | D2ID |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Termination enabled | TPWR | Closed |
| Termination disabled | TPWR | Open | |
| Note: Location of TMPWR is unidentified. | |||

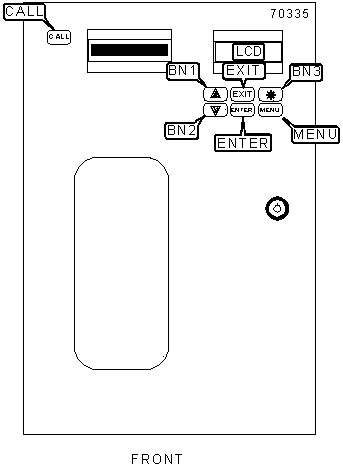

MENU KEYPAD |
|
Button |
Function |
BN1 |
Scrolls up through menu items |
BN2 |
Scrolls down through menu items |
BN3 |
Positions handler for magazine loading or inventory maintenance |
Call |
Extends/retracts the I/O port for cartridge insertion/removal |
Enter |
Accepts the currently displayed menu choice |
| Exit | Returns to the previous menu level |
| Menu | Returns to the top menu |
MANUFACTURERS RECOMMENDED MEDIA |
|
Tape |
Capacity |
| Imation QIC Data Cartridge | 16GB |
MISCELLANEOUS TECHNICAL NOTES |
N ote: This model is also available with a SCSI-2 Differential interface. |
