EXABYTE CORPORATION
MAMMOTH-LT (EXTERNAL-NARROW)
| Device Type | External Tape Drive |
| Interface | SCSI-2 Fast |
| Format | EXATAPE™ Advanced Metal Evaporated (AME) |
| Sustained Transfer Rate | 2MBPS (compression disabled) / 4MBPS (compression enabled) |
| Size | 5.25 in. half height |

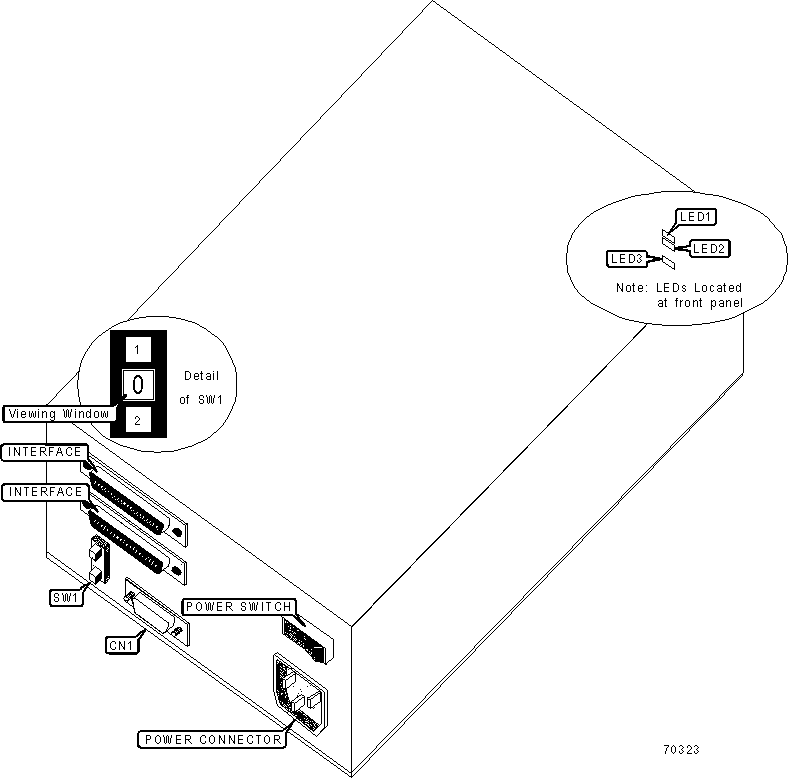

| View | Top |
CONNECTIONS |
|
Function |
Label |
| Monitor connector | CN1 |
DRIVE SELECT ID |
| Note: SCSI ID is selected by activating SW1 until the desired number is displayed in the viewing window. |
MANUFACTURERS RECOMMENED MEDIA |
||
Tape |
Capacity Without Compression |
Capacity With Compression |
22 meter AME |
2.5GB |
5.0GB |
125 meter AME |
14.0GB |
28.0GB |
DIAGNOSTIC LEDS |
|||
Status |
Condition |
||
LED 1 |
LED2 | LED3 | |
| On | On | On |
POST or reset switch running |
| Blinking | Off | Off | POST or reset switch halted |
| N/A | Off | Off | Tape drive is ready - no tape loaded |
| N/A | On | O ff |
Tape drive is loaded and ready |
| N/A | On | Blinking | Tape drive is running at normal speed |
| N/A | On | Blinking (Fast) | Tape drive is running at high speed |
| On | N/A | N/A | Drive requires cleaning |
| On | On | Blinking | Tape drive is in cleaning mode |
MISCELLANEOUS TECHNICAL NOTES |
Terminator must match drive’s SCSI interface (single-ended or differential, and wide or narrow). |
