SEAGATE TECHNOLOGY, INC.
PYTHON 4520NT, 4521NT
| Device Type | Internal Tape Drive |
| Interface | SCSI-1, SCSI-2 |
| Format | DAT (DDS) |
| Sustained Transfer Rate | 183 KBPS |
| Size | 5.25 in. half height |

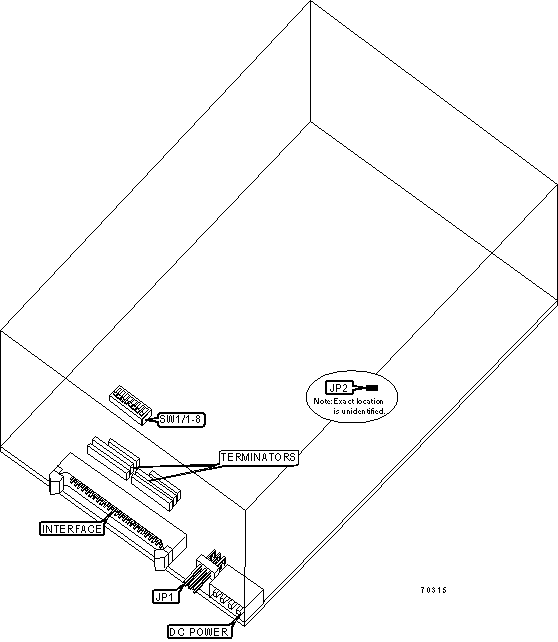

| View | Top |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| TEMPWR enabled | JP2 |
Closed |
|
| TEMPWR disabled | JP2 | Open | |
| » | SCSI-2 enabled | SW1/4 |
On |
| SCSI-1 enabled | SW1/4 |
Off |
|
| » | Parity check disabled | SW1/5 |
Off |
| Parity check enabled | SW1/5 |
On |
|
| » | Factory configured - do not alter | SW1/6 |
Off |
| » | Factory configured - do not alter | SW1/7 |
Off |
| » | Self-test disabled | SW1/8 |
Off |
| Self-test enabled | SW1/8 |
On |
|
DRIVE SELECT ID |
||||
Drive ID |
SW1/1 |
SW1/2 |
SW1/3 |
|
| 0 | Open |
Open |
Open |
|
| 1 | Closed |
Open |
Open |
|
| 2 | Open |
Closed |
Open |
|
| 3 | Closed |
Closed |
Open |
|
| 4 | Open |
Open |
Closed |
|
| 5 | Closed |
Open |
Closed |
|
| 6 | Open |
Closed |
Closed |
|
| » | 7 | Closed |
Closed |
Closed |
REMOTE SCSI ADDRESS SELECTION |
||||
SCSI ID |
JP1/1 |
JP1/2 |
JP1/3 |
|
0 |
Open |
Open |
Open |
|
1 |
Closed |
Open |
Open |
|
2 |
Open |
Closed |
Open |
|
3 |
Closed |
Closed |
Open |
|
4 |
Open |
Open |
Closed |
|
5 |
Closed |
Open |
Closed |
|
6 |
Open |
Closed |
Closed |
|
7 |
Closed |
Closed |
Closed |
|
| Note: To use the remote SCSI address port, set SW1/1, SW1/2, and SW1/3 to the Off position. | ||||
