SEAGATE TECHNOLOGY, INC.
PYTHON 4322NP, 4322NP-M, 4324NP
| Device Type | Internal Tape Drive |
| Interface | SCSI-1, SCSI-2 |
| Format | DAT, DDS, DDS-DC |
| Sustained Transfer Rate | 366KBPS |
| Size | 3.5 in. half height |

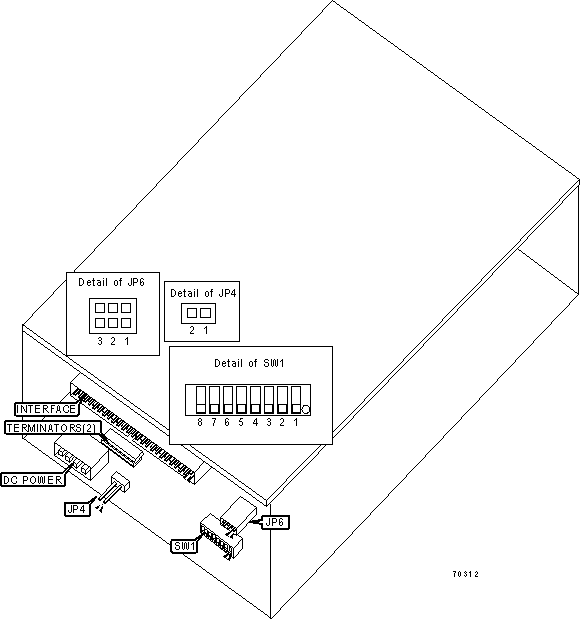

| View | Top |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | TERMPWR disabled | JP4 |
Open |
| TERMPWR enabled | JP4 |
Closed |
|
| » | SCSI-1 mode enabled | SW1/4 |
On |
| SCSI-2 mode enabled | SW1/4 |
Off |
|
| » | Parity check disabled | SW1/5 |
Off |
| Parity check enabled | SW1/5 |
On |
|
| » | DDS-DC enabled | SW1/6 |
Off |
| DDS enabled | SW1/6 |
On |
|
| » | Factory configured - do not alter | SW1/7 |
Off |
| » | Self test disabled | SW1/8 |
Off |
| Self test enabled | SW1/8 |
On |
|
DRIVE SELECT ID |
||||
Drive ID |
SW1/1 |
SW1/2 |
SW1/3 |
|
0 |
Off |
Off |
Off |
|
1 |
On |
Off |
Off |
|
2 |
Off |
On |
Off |
|
3 |
On |
On |
Off |
|
4 |
Off |
Off |
On |
|
5 |
On |
Off |
On |
|
6 |
Off |
On |
On |
|
| » | 7 |
On |
On |
On |
REMOTE SCSI ADDRESS SELECTION |
||||
SCSI ID |
JP6/1 |
JP6/2 |
JP6/3 |
|
0 |
Open |
Open |
Open |
|
1 |
Closed |
Open |
Open |
|
2 |
Open |
Closed |
Open |
|
3 |
Closed |
Closed |
Open |
|
4 |
Open |
Open |
Closed |
|
5 |
Closed |
Open |
Closed |
|
6 |
Open |
Closed |
Closed |
|
7 |
Closed |
Closed |
Closed |
|
| Note: To use the remote SCSI address port, set SW1/1, SW1/2, and SW1/3 to the Off position. | ||||
MANUFACTURERS RECOMMENDED MEDIA |
||
Tape |
Capacity Without Compression |
Capacity With Compression |
| 60 meter DDS cartridge | 1.3GB |
2.6GB |
| 90 meter DDS cartridge | 2.0GB |
4.0GB |
