SEAGATE TECHNOLOGY, INC.
PYTHON 4322NT
| Device Type | Internal Tape Drive |
| Interface | SCSI-1, SCSI-2 |
| Format | DAT (DDS) |
| Sustained Transfer Rate | 366 KBPS |
| Size | 3.5 in. half height |

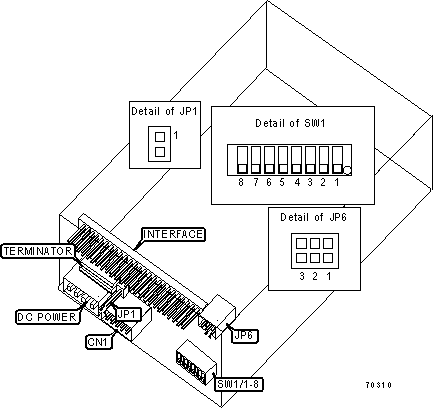

| View | Top |
CONNECTIONS |
|
Function |
Label |
| Serial port | CN1 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | SCSI 2 mode enable | SW1/4 | On |
| SCSI 1 mode enable | SW1/4 | Off | |
| » | Parity check disable | SW1/5 | Off |
| Parity check enable | SW1/5 | On | |
| » | DDS Pass-Through disable | SW1/6 | Off |
| DDS Pass-Through enable | SW1/6 | On | |
| » | Factory configured - do not alter | SW1/7 | Off |
| » | POST disable | SW1/8 | Off |
| POST enable | SW1/8 | On | |
| » | TRMPWR disable | JP1 | Open |
| TRMPWR enable | JP1 | Closed | |
REMOTE SCSI ADDRESS SELECTION |
||||
SCSI ID |
JP6/1 |
JP6/2 |
JP6/3 |
|
0 |
Open |
Open |
Open |
|
1 |
Closed |
Open |
Open |
|
2 |
Open |
Closed |
Open |
|
3 |
Closed |
Closed |
Open |
|
4 |
Open |
Open |
Closed |
|
5 |
Closed |
Open |
Closed |
|
6 |
Open |
Closed |
Closed |
|
| » | 7 |
Closed |
Closed |
Closed |
| Note: To use the remote SCSI address port, set SW1/1, SW1/2, and SW1/3 to the Off position. | ||||
SCSI ADDRESS SELECTION |
||||
SCSI ID |
SW1/1 |
SW1/2 |
SW1/3 |
|
| » | 0 |
Off |
Off |
Off |
1 |
On |
Off |
Off |
|
2 |
Off |
On |
Off |
|
3 |
On |
On |
Off |
|
4 |
Off |
Off |
On |
|
5 |
On |
Off |
On |
|
6 |
Off |
On |
On |
|
7 |
On |
On |
On |
|
MANUFACTURERS RECOMMENDED MEDIA |
||
Tape |
Capacity Without Compression |
Capacity With Compression |
| 60 meter DDS | 1.3 GB | 5.2 GB |
| 90 meter DDS | 2.0 GB | 8.0 GB |
