SEAGATE TECHNOLOGY, INC.
MAYNSTREAM 1300 INTERNAL
| Device Type | Internal Tape Drive |
| Interface | SCSI-1 |
| Format | DAT (DDS) |
| Sustained Transfer Rate | 183 KBPS |
| Size | 5.25 in. half height |

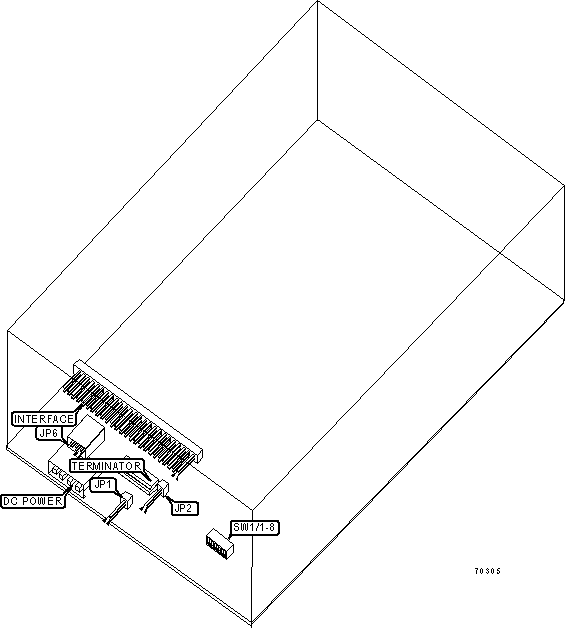

| View | Top |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | SCSI 2 mode enabled | SW1/4 | On |
| SCSI 1 mode enabled | SW1/4 | Off | |
| » | Parity check disabled | SW1/5 | Off |
| Parity check enabled | SW1/5 | On | |
| » | Factory configured - do not alter | SW1/6 | Off |
| » | Factory configured - do not alter | SW1/7 | Off |
| » | POST disabled | SW1/8 | Off |
| POST enabled | SW1/8 | On | |
| » | TRMPWR disabled | JP1 | Open |
| TRMPWR enabled | JP1 | Closed | |
| » | Factory configured - do not alter | JP2 | Unidentified |
REMOTE SCSI ADDRESS SELECTION |
||||
SCSI ID |
JP6/1 |
JP6/2 |
JP6/3 |
|
| » | 0 |
Open |
Open |
Open |
1 |
Closed |
Open |
Open |
|
2 |
Open |
Closed |
Open |
|
3 |
Closed |
Closed |
Open |
|
4 |
Open |
Open |
Closed |
|
5 |
Closed |
Open |
Closed |
|
6 |
Open |
Closed |
Closed |
|
7 |
Closed |
Closed |
Closed |
|
| Note: To use the remote SCSI address port, set SW1/1, SW1/2, and SW1/3 to the Off position. | ||||
SCSI ADDRESS SELECTION |
||||
SCSI ID |
SW1/1 |
SW1/2 |
SW1/3 |
|
| » | 0 |
Off |
Off |
Off |
1 |
On |
Off |
Off |
|
2 |
Off |
On |
Off |
|
3 |
On |
On |
Off |
|
4 |
Off |
Off |
On |
|
5 |
On |
Off |
On |
|
6 |
Off |
On |
On |
|
7 |
On |
On |
On |
|
