IBM CORPORATION
OPTIONS 10/20 GB TR-5 IDE TAPE
| Device Type | Internal Tape Drive |
| Interface | IDE(AT) |
| Format | TRAVAN TR-5 |
| Sustained Transfer Rate | 2 MBPS |
| Size | 3.5 in. half height |

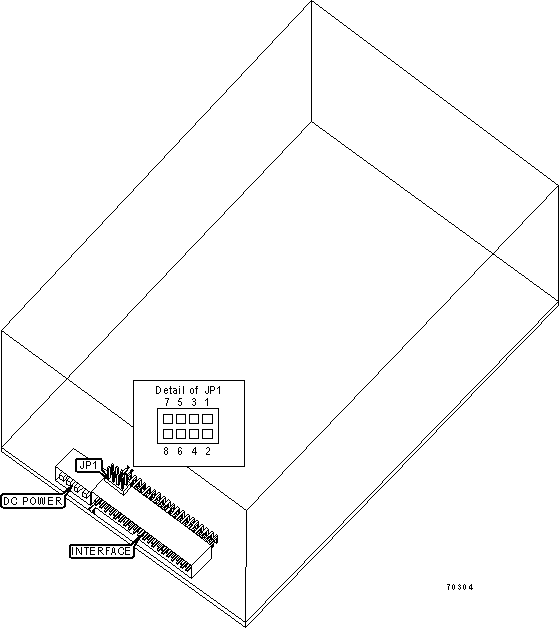

| View | Bottom |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | JP1 | Pins 7 & 8 unidentified |
| Single drive only | JP1 | Pins 5 & 6 closed | |
| Master in two drive system | JP1 | Pins 5 & 6 closed | |
| » | Slave in two drive system | JP1 | Pins 3 & 4 closed |
| Cable select setting | JP1 | Pins 1 & 2 closed | |
MANUFACTURERS RECOMMENDED MEDIA |
||
Tape |
Capacity Without Compression |
Capacity With Compression |
| Standard 900 Oe | 2 GB | 4 GB |
| Travan (TR-4) | 4 GB | 8 GB |
| Travan (TR-5) | 10 GB | 20 GB |
