HEWLETT-PACKARD COMPANY
SURESTORE TAPE 6000 INTERNAL
| Device Type | Internal Tape Drive |
| Interface | SCSI-2 |
| Format | DDS, DDS-2, DDS-DC |
| Sustained Transfer Rate | 1 MBPS |
| Size | 5.25 in. half height |

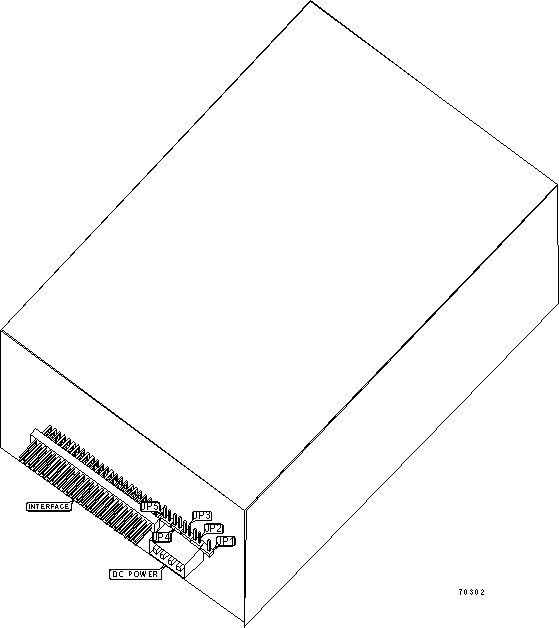

| View | Top |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | JP1 | Unidentified |
| Termination enabled | JP5 | Closed | |
| Termination disabled | JP5 | Open | |
DRIVE SELECT ID |
||||
Drive ID |
J P4 |
JP3 |
J P2 |
|
0 |
Open | Open | Open | |
1 |
Open | Open | Closed | |
2 |
Open | Closed | Open | |
3 |
Open | Closed | Closed | |
4 |
Closed | Open | Open | |
5 |
Closed | Open | Closed | |
6 |
Closed | Closed | Open | |
7 |
Closed | Closed | Closed | |
DIAGNOSTIC LED(S) |
||
LED 1 |
LED2 |
Condition |
| Off | Off | Power Off |
| On | Off | Cartridge present, inactive |
| Blinking (Fast) | Off | Cartridge present, active |
| Blinking (Slow) | Off | Loading or Unloading or Ejecting or Power On |
| Off | On | Power-on self test failure |
| Off | Blinking (Slow) | Cartridge absent - cleaning needed |
| On | Blinking (Slow) | Cartridge present - cleaning needed |
| Blinking (Fast) | Blinking (Slow) | Cartridge present, drive active - cleaning needed |
| Blinking (Slow) | Blinking (Slow) | Cartridge loading or unloading - cleaning needed |
