BENCHMARK TAPE SYSTEMS CORPORATION
DLT1 INTERNAL
| Device Type | Internal tape drive |
| Interface | Ultra SCSI-2 |
| Format | DLT |
| Sustained Transfer Rate | 6144 MBPS |
| Size | 5.25 in. full height |
| View | Top |

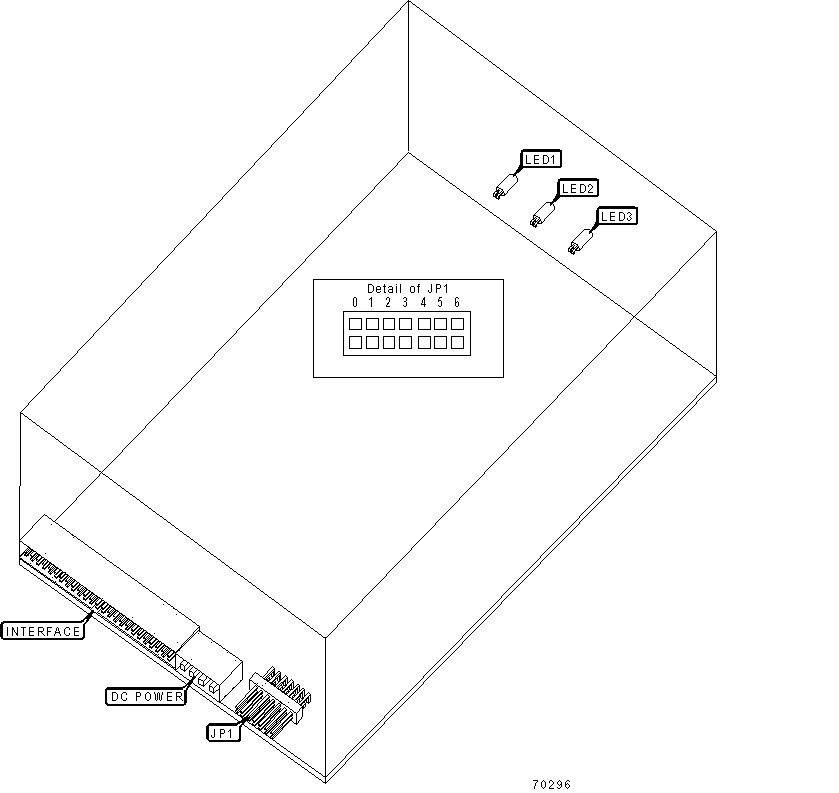

USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position | |
| » | Factory configured - do not alter | JP1/Pins 1 & 2 | Open |
| » | Factory configured - do not alter | JP1/Pins 3 & 4 | Open |
| » | Factory configured - do not alter | JP1/Pins 5 & 6 | Open |
SCSI ID SELECTION |
|||||
SCSI ID |
JP1/Pins 7 & 8 |
JP1/Pins 9 & 10 |
JP1/Pins 11 & 12 |
JP1/Pins 13 & 14 |
|
| 0 | Open | Open | Open | Open | |
| 1 | Open | Open | Open | Closed | |
| 2 | Open | Open | Closed | Open | |
| 3 | Open | Open | Closed | Closed | |
| 4 | Open | Closed | Open | Open | |
| » | 5 | Open | Closed | Open | Closed |
| 6 | Open | Closed | Closed | Open | |
| 7 | Open | Closed | Closed | Closed | |
| 8 | Closed | Open | Open | Open | |
| 9 | Closed | Open | Open | Closed | |
| 10 | Closed | Open | Closed | Open | |
| 11 | Closed | Open | Closed | Closed | |
| 12 | Closed | Closed | Open | Open | |
| 13 | Closed | Closed | Open | Closed | |
| 14 | Closed | Closed | Closed | Open | |
| 15 | Closed | Closed | Closed | Closed | |
MANUFACTURERS RECOMMENDED MEDIA |
||
Tape |
Capacity Without Compression |
Capacity With Compression |
| DLT IV | 40GB | 80GB |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| LED1 | Unidentified |
On |
Drive needs to be cleaned/cartridge is bad. |
| LED1 | Unidentified |
Off |
Cleaning has finished/no cleaning needed. |
| LED2 | Unidentified |
On |
Tape is loaded. |
| LED2 | Unidentified | Off | Tape is not loaded |
| LED2 | Unidentified | Blinking | Tape is spinning |
| LED3 | Unidentified | On | Write-protection is enabled |
| LED3 | Unidentified | Off | Write-protection is not enabled |
| Note: If all 3 LED's are on then the POST is starting, if all are blinking then a POST error has occurred. | |||
