TECMAR TECHNOLOGIES, INC.
E5525ES, E51000HT, E52000HT
| Device Type | External Tape Drive |
| Interface | SCSI |
| Format | Quarter Inch |
| Sustained Transfer Rate | Unidentified |
| Size | External dimensions unidentified |

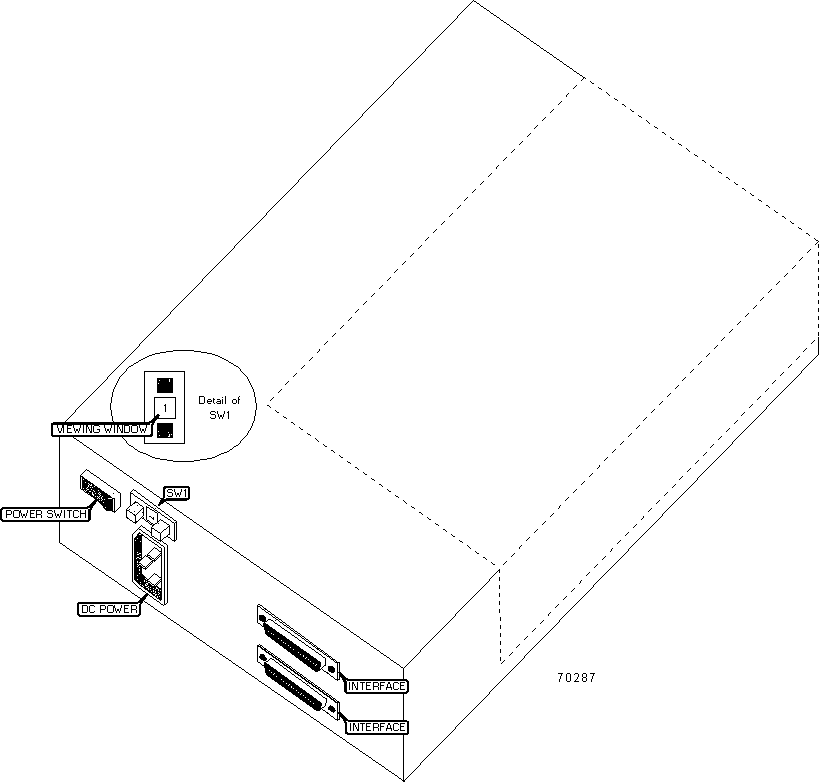

| View | Top |
DRIVE SELECT ID |
| Note: SCSI ID is selected by activating SW1 until the desired number is displayed in the viewing window. |
MANUFACTURERS RECOMMENDED MEDIA |
||
Drive |
Tape |
Capacity |
| 5525ES | DC6250 | 250MB |
| 5525ES | DC6525 | 525MB |
| 51000HT | DC6250 | 250MB |
| 51000HT | DC6525 | 525MB |
| 51000HT | DC9120 | 1.2GB |
| 52000HT | DC6250 | 250MB |
| 52000HT | DC6525 | 525MB |
| 52000HT | DC9120 | 1.2GB |
| 52000HT | DC9250 | 2.5GB |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Amber |
Flashing |
Drive activity on the SCSI bus |
LED1 |
Amber |
Pulsing |
Drive fault condition exists |
LED1 |
Amber |
Off |
Drive not active |
LED2 |
Amber |
Flashing |
Drive activity on the SCSI bus |
LED2 |
Amber |
Pulsing |
Drive fault condition exists |
LED2 |
Amber |
Off |
Drive not active |
LED3 |
Green |
On |
Drive power is on |
LED3 |
Green |
Off |
Drive power is off |
| Note: "Pulsing" LED1 & LED2 refers to a flash 1 - 5 times every 3 seconds. | |||
