TECMAR
ETS 520CSL (REV. A)
|
Device Type |
External Tape Drive |
|
Interface |
SCSI-2 Fast |
|
Format |
QIC-3220-MC |
|
Sustained Transfer Rate |
1.0 MBPS/2.0 MBPS |
|
View |
Top |
|

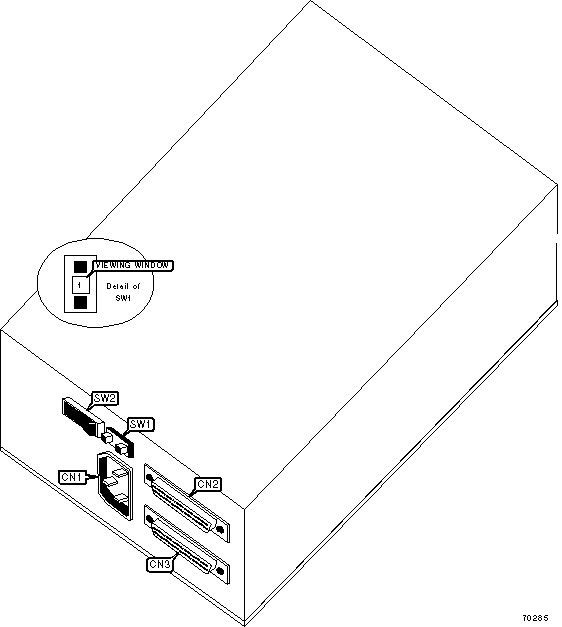

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Power connector |
CN1 |
SCSI-2 interface |
CN3 |
|
SCSI-2 interface |
CN2 |
Power switch |
SW2 |
|
DRIVE SELECT ID |
|
Note : SCSI ID is selected by activating SW1 until the desired number is displayed in the viewing window. |
|
MANUFACTURERS RECOMMENDED MEDIA |
||
|
Tape |
Capacity Without Compression |
Capacity With Compression |
|
Travan 5 |
10.0GB |
20.0GB |
|
NS20 |
10.0GB |
20.0GB |

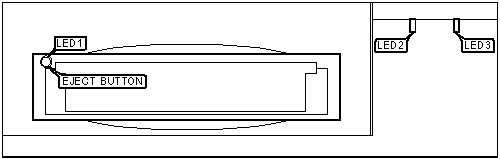

FRONT PANEL
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Tape is loaded; drive is ready |
|
LED1 |
Green |
Blinking (fast) |
Data is being transferred, or being initialized |
|
LED1 |
Green |
Blinking (slow) |
Firmware is being downloaded, or error has occurred |
|
LED2 |
Green |
Off |
Not used |
|
LED3 |
Green |
On |
Power is on |
|
LED3 |
Green |
Off |
Power is off |
