TANDBERG DATA
SLR6 (EXTERNAL)
|
Device Type |
External Tape Drive |
|
Interface |
SCSI-2 Fast/Wide |
|
Format |
SLR6 |
|
Sustained Transfer Rate |
1.2 MBPS |
|
Size |
5.25 in. half height |
|
View |
Top |
|

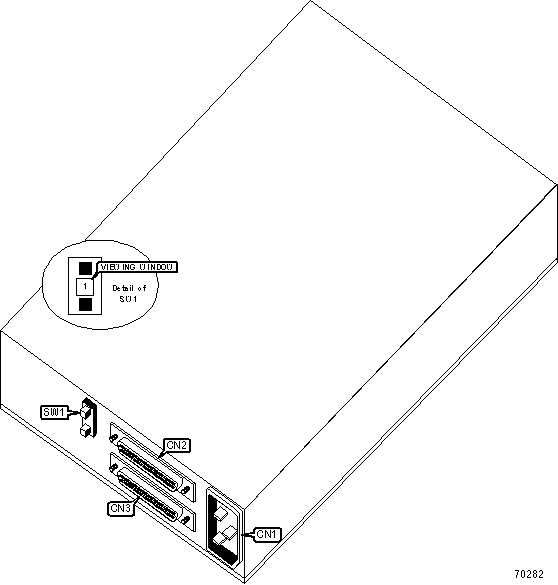

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Power connector |
CN1 |
SCSI-2 F/W interface |
CN3 |
|
SCSI-2 F/W interface |
CN2 |
||
|
DRIVE SELECT ID |
|
Note : SCSI ID is selected by activating SW1 until the desired number is displayed in the viewing window. |
|
MANUFACTURERS RECOMMENDED MEDIA |
||
|
Tape |
Capacity Without Compression |
Capacity With Compression |
|
DC 9200/Magnus 2.0 |
2.0GB |
4.0GB |
|
DC 9250/Magnus 2.5 |
2.5GB |
5.0GB |
|
SLR5 |
4.0GB |
8.0GB |
|
SLR6 |
12.0GB |
24.0GB |

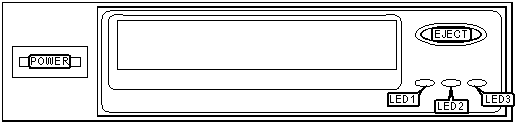

FRONT PANEL
|
DIAGNOSTIC LED(S) |
|||
|
Condition |
LED1 (Green) |
LED2 (Green) |
LED3 (Amber) |
|
LED test during power up |
On |
On |
On |
|
Unit is in power up self test or diagnostic tape activity |
Blinking |
Off |
Off |
|
Tape is not loaded |
Off |
Off |
Off |
|
Tape is not loaded; cleaning needed |
Off |
Off |
On |
|
Tape is loaded; no activity |
On |
Off |
Off |
|
Tape is loaded; tape is moving or tape is loading/unloading |
On |
Blinking |
Off |
|
Tape is loaded; no activity; cleaning needed |
On |
Off |
On |
|
Tape is loaded; tape is moving; cleaning needed |
On |
Blinking |
On |
|
Unit is in cleaning mode |
Off |
Blinking |
On |
|
Tape or drive failure |
Off |
Off |
Blinking |
|
DIAGNOSTIC LED(S) DURING FLASH UPGRADE |
|||
|
Condition |
LED1 (Green) |
LED2 (Green) |
LED3 (Amber) |
|
Performing EEC and header check on data buffer code; or code is executed from RAM |
On |
Off |
Off |
|
FLASH update is being transferred to RAM |
On |
Off |
On |
|
Old code is being erased |
Off |
On |
On |
|
FLASH programming in progress |
Blinking |
On |
On |
|
FLASH programming is complete; unit is ready |
Off |
On |
Off |
|
Error has occurred; re-initialize drive |
On |
On |
On |
