COMPAQ COMPUTER CORPORATION
20/40-GB DLT (INTERNAL)
| Device Type | Internal Tape Drive |
| Interface | SCSI Fast |
| Format | DLT |
| Sustained Transfer Rate | 1.50 MBPS |
| Size | 5.25 in. full height |

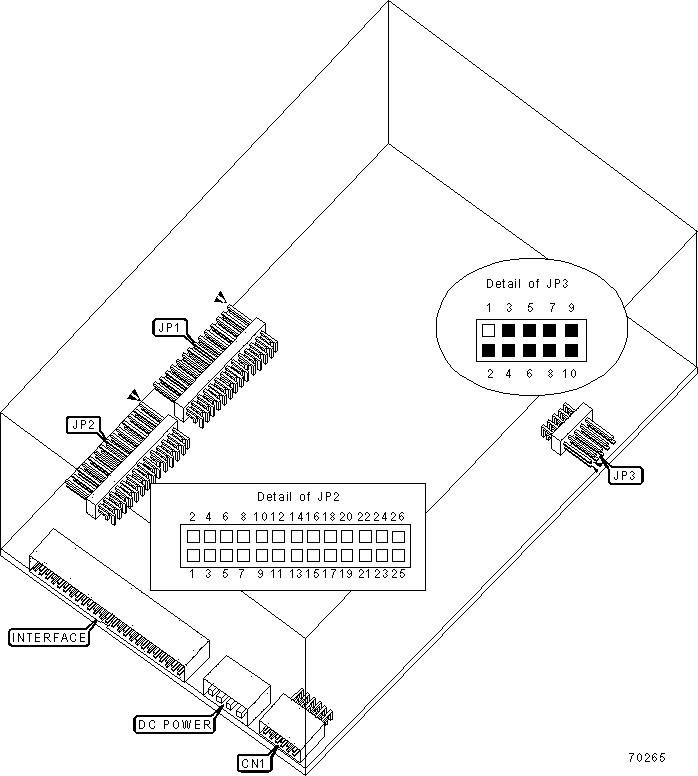

| View | Top |
CONNECTIONS |
|
Function |
Label |
| Unidentified | CN1 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | JP1 |
Pins 1 - 26 unidentified |
| » | Factory configured - do not alter | JP2 |
Pins 1 - 22 unidentified |
| » | Term power disabled | JP2 |
Pins 23 & 24 open |
| Term power enabled | JP2 |
Pins 23 & 24 closed |
|
| » | Factory configured - do not alter | JP2 |
Pins 25 & 26 unidentified |
| Remote ID enabled | JP3 | Pins 1 & 2 closed | |
| Remote ID disabled | JP3 | Pins 1 & 2 open | |
| » | Parity enabled | JP3 | Pins 3 & 4 closed |
| Parity disabled | JP3 | Pins 3 & 4 open | |
DRIVE SELECT ID |
||||
Drive ID |
JP3/Pins 5 & 6 |
JP3/Pins 7 & 8 |
JP3/Pins 9 & 10 |
|
0 |
Open |
Open |
Open |
|
1 |
Open |
Open |
Closed |
|
2 |
Open |
Closed |
Open |
|
3 |
Open |
Closed |
Closed |
|
4 |
Closed |
Open |
Open |
|
5 |
Closed |
Open |
Closed |
|
6 |
Closed |
Closed |
Open |
|
7 |
Closed |
Closed |
Closed |
|
MANUFACTURERS RECOMMENDED MEDIA |
||
Tape |
Capacity Without Compression |
Capacity With Compression |
DLT tape III |
10GB |
20GB |
DLT tape IIIxt |
15GB |
30GB |
DLT tape IV |
20GB |
40GB |
