SONY CORPORATION
TSL-9000
| Device Type | Internal Tape Drive |
| Interface | SCSI |
| Format | DDS, DDS-2, DDS-3 |
| Sustained Transfer Rate | 1180KBPS |
| Size | 5.25 in. full height |

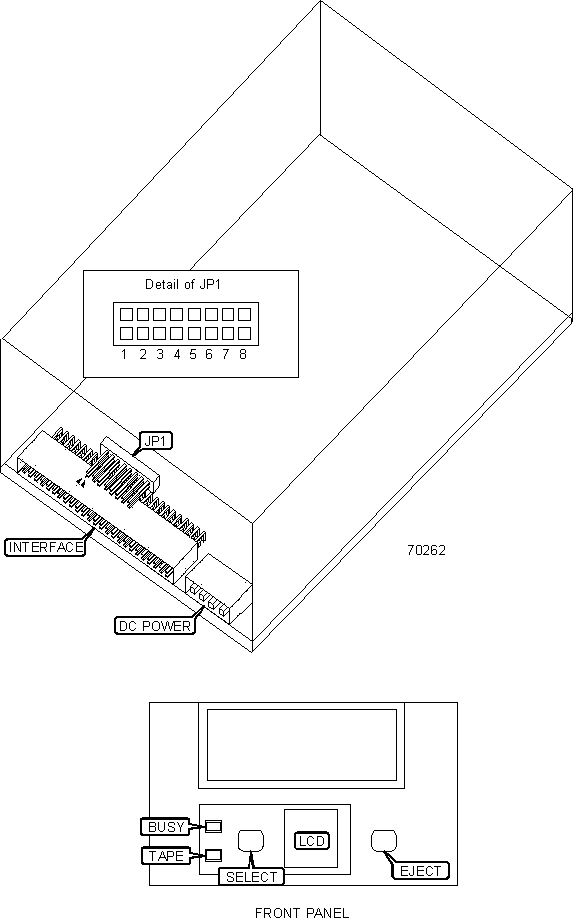

| View | Top |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Data compression/decompression enabled | JP1/4 | Open |
| Data compression/decompression disabled | JP1/4 | Closed | |
| » | Parity enabled | JP1/5 | Closed |
| Parity disabled | JP1/5 | Open | |
| » | Factory configured - do not alter | JP1/6 | Open |
| » | Termination enabled | JP1/7 | Closed |
| Termination disabled | JP1/7 | Open | |
| » | Termination power enabled | JP1/8 | Closed |
| Termination power disabled | JP1/8 | Open | |
DRIVE SELECT ID |
||||
Drive ID |
JP1/1 | JP1/2 | JP1/3 | |
0 |
Open | Open | Open | |
1 |
Open | Open | Closed | |
2 |
Open | Closed | Open | |
3 |
Open | Closed | Closed | |
4 |
Closed | Open | Open | |
| 5 | Closed | Open | Closed | |
| » | 6 | Closed | Closed | Open |
| 7 | Closed | Closed | Closed | |
MANUFACTURERS RECOMMENDED MEDIA |
||
Tape |
Capacity Without Compression |
Capacity With Compression |
| 60 meter DDS cartridge | 1.3 GB | 2.6 GB |
| 90 meter DDS cartridge | 2.0 GB | 4.0 GB |
| 120 meter DDS-2 cartridge | 4.0 GB | 8.0 GB |
| 125 meter DDS-3 cartridge | 12.0 GB | 24.0 GB |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| BUSY | G reen |
O n |
SCSI interface is active |
| BUSY | G reen |
B linking |
Drive is active |
| BUSY | A mber |
B linking |
Drive is writing data to tape |
| BUSY | Green/amber | Off | Drive is not active |
| TAPE | Green | On | Tape cartridge is loaded |
| TAPE | Green | Blinking | Tape cartridge is loading/unloading |
| TAPE | Green | Off | Tape cartridge not present |
