SEAGATE TECHNOLOGY, INC.
IRWIN 9131 SI
| Device Type | Internal Tape Drive |
| Interface | SCSI |
| Format | DDS |
| Sustained Transfer Rate | 183 KBPS |
| Size | 5.25 in. half height |

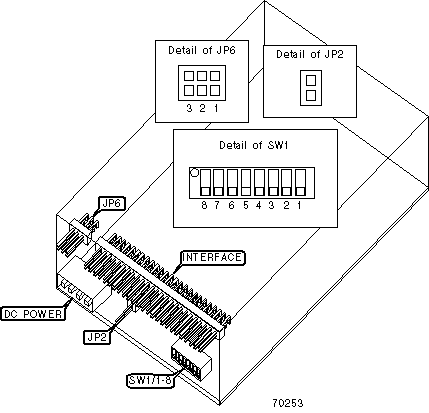

| View | Top |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | SCSI 1 mode enabled | SW1/4 |
Off |
| SCSI 2 mode enabled | SW1/4 |
On |
|
| » | Parity check enabled | SW1/5 |
On |
| Parity check disabled | SW1/5 |
Off |
|
| » | Factory configured - do not alter | SW1/6 |
Reserved |
| » | Factory configured - do not alter | SW1/7 |
Reserved |
| » | Self-Test enabled | SW1/8 |
On |
| Self-Test disabled | SW1/8 |
Off |
|
SCSI ADDRESS SELECTION |
||||
Address |
SW1/1 |
SW1/2 |
SW1/3 |
|
0 |
Off |
Off |
Off |
|
1 |
On |
Off |
Off |
|
2 |
Off |
On |
Off |
|
3 |
On |
On |
Off |
|
4 |
Off |
Off |
On |
|
5 |
On |
Off |
On |
|
6 |
Off |
On |
On |
|
| » | 7 |
On |
On |
On |
REMOTE SCSI ADDRESS SELECTION |
||||
SCSI ID |
JP6/1 |
JP6/2 |
JP6/3 |
|
0 |
Off |
Off |
Off |
|
1 |
On |
Off |
Off |
|
2 |
Off |
On |
Off |
|
3 |
On |
On |
Off |
|
4 |
Off |
Off |
On |
|
5 |
On |
Off |
On |
|
6 |
Off |
On |
On |
|
| » | 7 |
On |
On |
On |
TERMINATION POWER SELECTION |
||
Setting |
JP2 |
|
| » | TERMPWR disabled |
Open |
TERMPWR enabled |
Closed |
|
MANUFACTURERS RECOMMENDED MEDIA |
|
Tape |
Capacity |
60-meter DDS DAT cartridge |
1.3GB |
