TECMAR TECHNOLOGIES, INC.
5525ES, 51000HT, 52000HT
| Device Type | Internal Tape Drive |
| Interface | SCSI |
| Format | Quarter inch |
| Sustained Transfer Rate | Unidentified |
| Size | 5.25 in. half height |

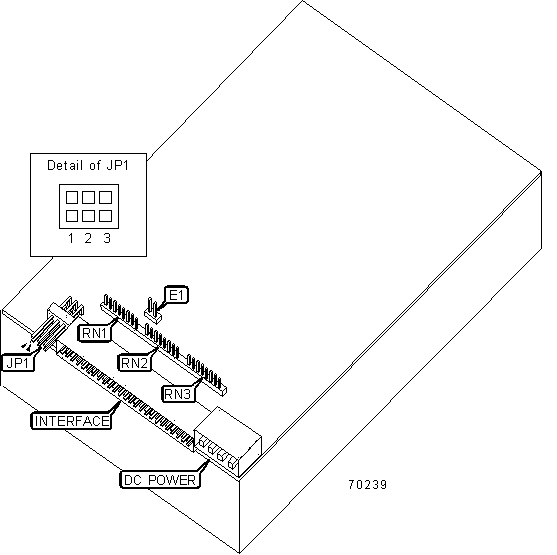

| View | Bottom |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | TERMPWR supplied by drive | E1 | Closed |
| TERMPWR supplied by SCSI interface from host | E1 | Open | |
DRIVE SELECT ID |
||||
Drive ID |
JP1/1 |
JP1/2 |
JP1/3 |
|
0 |
Open | Open | Open | |
1 |
Closed | Open | Open | |
2 |
Open | Closed | Open | |
3 |
Closed | Closed | Open | |
| » | 4 |
Open | Open | Closed |
| 5 | Closed | Open | Closed | |
| 6 | Open | Closed | Closed | |
| 7 | Closed | Closed | Closed | |
TERMINATION SELECTION |
||||
Setting |
RN1 | RN2 | RN3 | |
| » | Termination enabled | Closed | Closed | Closed |
| Termination disabled | Open | Open | Open | |
| Note: RN1, RN2 & RN3 are resistors. | ||||
MANUFACTURERS RECOMMENDED MEDIA |
||
Drive |
Tape |
Capacity |
| 5525ES | DC6250 | 250MB |
| 5525ES | DC6525 | 525MB |
| 51000HT | DC6250 | 250MB |
| 51000HT | DC6525 | 525MB |
| 51000HT | DC9120 | 1.2GB |
| 52000HT | DC6250 | 250MB |
| 52000HT | DC6525 | 525MB |
| 52000HT | DC9120 | 1.2GB |
| 52000HT | DC9250 | 2.5GB |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| LED1 | Amber |
Blinking |
Drive active on the SCSI bus |
| LED1 | Amber |
Pulsing |
Drive fault condition exists |
| LED1 | Amber |
Off |
Drive is not active |
Note: "Pulsing" LED1 refers to a flash 1 - 5 times every 3 seconds. |
|||
MISCELLANEOUS TECHNICAL NOTES |
Adapter cable is required between the power supply connector and the tape drive power connector for the 51000HT only. |
