TECMAR TECHNOLOGIES, INC.
ETS420C (REV. A)
| Device Type | External Tape Drive |
| Interface | SCSI |
| Format | QICWide, Travan TR-4 |
| Sustained Transfer Rate | Unidentified |
| Size | External dimensions unidentified |
| View | Top |

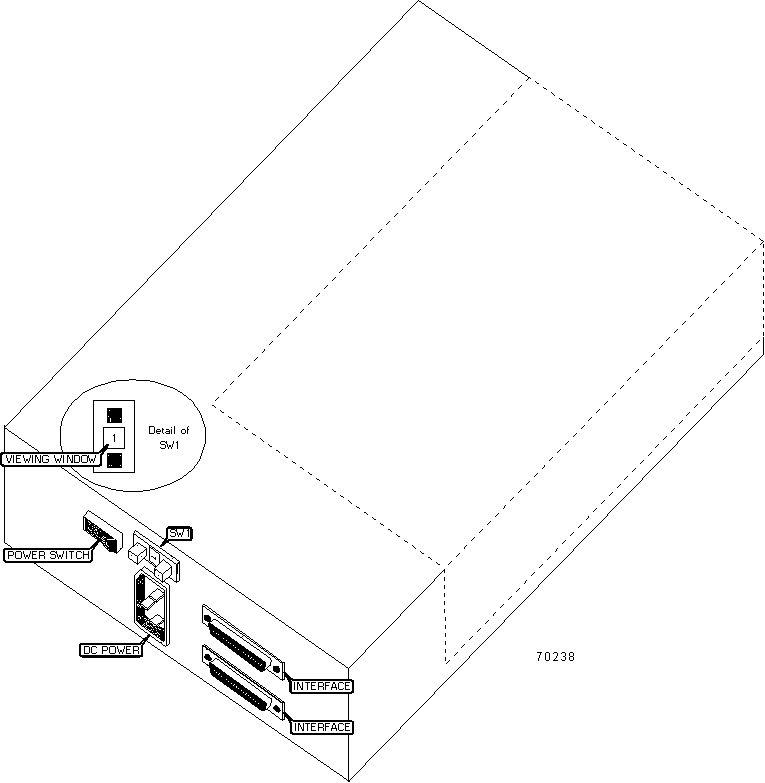

DRIVE SELECT ID |
| Note: SCSI ID is selected by activating SW1 until the desired number is displayed in the viewing window. |
MANUFACTURERS RECOMMENDED MEDIA |
||
Tape |
Capacity Without Compression |
Capacity With Compression |
QICWide |
2.0GB |
4.0GB |
Travan 4 |
4.0GB |
8.0GB |

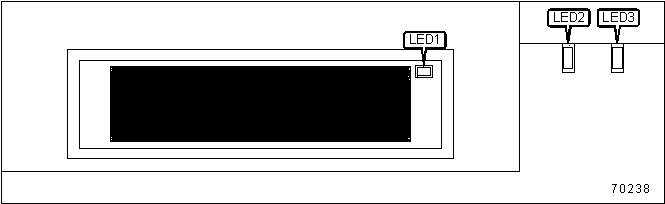

DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Green |
On |
Drive ready/cartridge loaded and initialized |
LED1 |
Green |
Slow Flash |
Drive is active or a cartridge is being initialized |
LED1 |
Green |
Fast Flash |
Drive firmware is being downloaded and updated or a drive fault has occurred |
LED1 |
Green |
Off |
Drive not active |
LED2 |
Unidentified |
N/A |
N/A |
LED3 |
Green |
On |
Drive power is on |
LED3 |
Green |
Off |
Drive power is off |
| Note: LED2 is not used. | |||
