HEWLETT-PACKARD COMPANY
HP C5677A, HP SURESTORE DAT24X6I
| Device Type | Internal Tape Drive |
| Interface | SCSI-2 |
| Format | DDS, DDS-2, DDS-3, DDS-DC |
| Sustained Transfer Rate | 512 KBPS
(native), 1 MBPS (compressed) / 1MBPS (native), 2MBPS (compressed) |
| Size | 5.25 in. full height |
| View | Top |

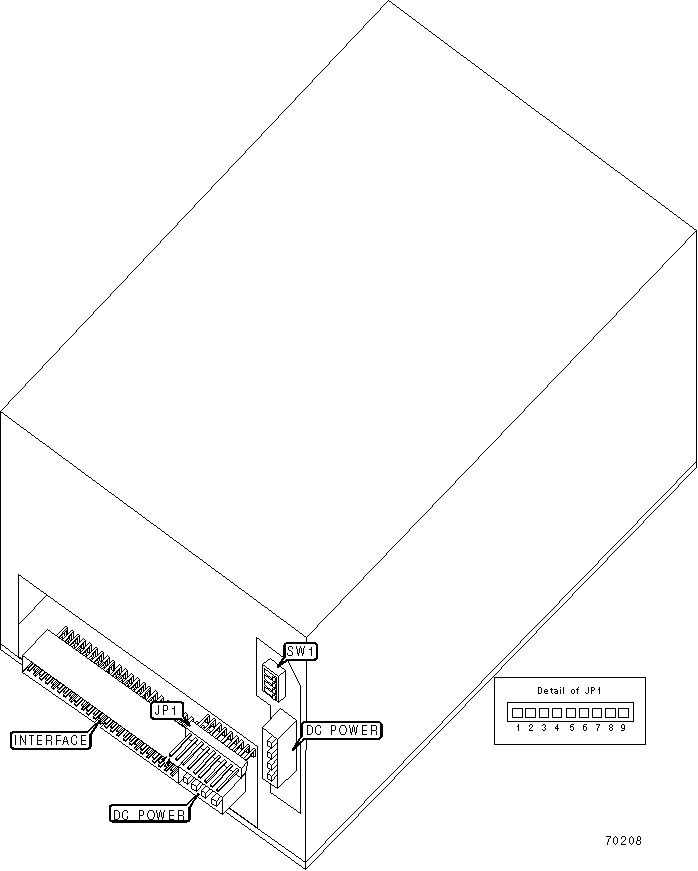

DRIVE SELECT ID |
|||
Drive ID |
JP1/Pins 3 & 4 |
JP1/Pins 5 & 6 |
JP1/Pins 7 & 8 |
0 |
Open |
Open |
Open |
1 |
Open |
Open |
Closed |
2 |
Open |
Closed |
Open |
3 |
Open |
Closed |
Closed |
4 |
Closed |
Open |
Open |
5 |
Closed |
Open |
Closed |
6 |
Closed |
Closed |
Open |
7 |
Closed |
Closed |
Closed |
TERMINATION POWER SELECTION |
|
Setting |
JP1/Pins 1 & 2 |
| TERMPWR supplied by drive | Closed |
| TERMPWR supplied by SCSI interface to drive | Open |
AUTOLOADER OPTION SETTINGS |
||||
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
| HP Series 700, IBM AIX, PCs | On |
On |
On |
Off |
| HP Series 800 | Off |
On |
On |
Off |
| Sun Solaris2 and SunOS | On |
Off |
On |
Off |
MANUFACTURERS RECOMMENDED MEDIA |
||
Tape |
Capacity Without Compression |
Capacity With Compression |
DDS |
2GB |
4GB |
DDS-2 |
4GB |
8GB |
DDS-3 |
12GB |
24GB |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Green |
On |
A tape magazine is loaded in the drive |
LED1 |
Green |
Blinking |
A tape magazine is being loaded in the drive |
LED1 |
Green |
Off |
A tape magazine is not loaded in drive |
LED2 |
Green |
On |
A cartridge is loaded in the drive |
LED2 |
Green |
Blinking fast |
The drive is reading/writing or is in a power diagnostic mode |
LED2 |
Green |
Blinking slow |
A cartridge is being loaded in drive |
LED2 |
Green |
Off |
No tape activity |
LED3 |
Amber |
On |
A fatal hardware error has occurred |
LED3 |
Amber |
Blinking |
A non-fatal error has occurred |
LED3 |
Amber |
Off |
Drive operation is good |
