SST
5136-PFB-PCI
| Card Type | Network Interface Card |
| NIC Type | ProfiBus |
| Maximum Onboard Memory | 1.2MB |
| Boot ROM | Not available |
| Network Transfer Rate | 12Mbps/6Mbps/3Mbps/1.5Mbps/750Kbps/500Kbps/ 187.5Kbps/93.75Kbps/19.2Kbps/9.6Kbps |
| Topology | Unidentified |
| Data Bus | 32-bit PCI |

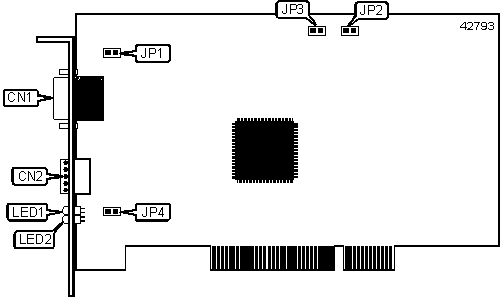

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| DB-9 STD connector | CN1 |
Phoenix connector | CN 2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Transmission enabled | JP1 | Closed |
| Transmission disabled | JP1 | Open | |
| » | Flash write enabled | JP2 | Closed |
| Flash write disabled | JP2 | Open | |
| » | Boot flash write protection enabled | JP3 | Closed |
| Boot flash write protection disabled | JP3 | Open | |
| » | Normal boot mode | JP4 | Pins 1 & 2 closed |
| Initial boot mode | JP4 | Pins 2 & 3 closed | |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Red |
On | An internal error has occured |
LED 2 |
Red |
On | Bit is 0 in an 8-bit sequential error code |
LED 2 |
Green |
O n |
Bit is 1 in an 8-bit sequential error code |
| Note: Most LED states are dependent on software. | |||
