SST

5136-PFB-ISA
Card Type Network Interface Card
NIC Type ProfiBus
Maximum Onboard Memory 1.2 MB
Boot ROM Not available
Network Transfer Rate 12Mbps/6Mbps/3Mbps/1.5Mbps/750Kbps/500Kbps/
187.5Kbps/93.75Kbps/19.2Kbps/9.6Kbps
Topology Unidentified
Data Bus 16-bit ISA

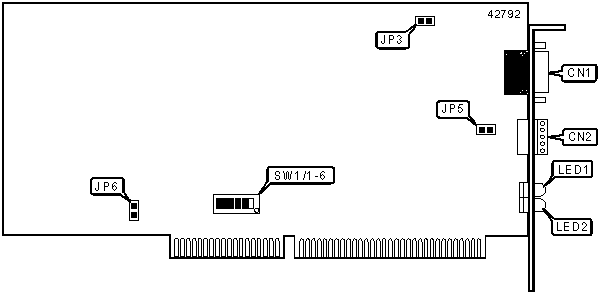

CONNECTIONS

Function

Label

Function

Label
ProfiBus connector

CN1

 Shared interrupt header

JP3
Phoenix connector

CN2




USER CONFIGURABLE SETTINGS

Function

Label

Position
» Transmit enable jumper JP5 Closed
  Transmit enable jumper JP5 Open
» Flash write enable jumper JP6 Closed
  Flash write enable jumper JP6 Open


BASE I/O ADDRESS SELECTION

Port Address

 SW1/1 SW1/2 SW1/3 SW1/4 SW1/5 SW1/6
200h On On On On On On
208h On On On On On Off
210h On On On On Off On
218h On On On On Off Off
220h On On On Off On On
600h Off On On On On On
6D8h Off Off Off On Off Off
6E0h Off Off Off Off On On
6E8h Off Off Off Off On Off
6F0h Off Off Off Off Off On
6F8h Off Off Off Off Off Off


DIAGNOSTIC LED(S)

LED

Color

Status

Function

LED1

Red

On

An internal error has occurred

LED2

Red

On

Bit is 0 in an 8-bit sequential error code

LED2

Green

On

Bit is 1 in an 8-bit sequential error code
Note: Most LED states are dependent on software.
