SST
5136-PFB-104
| Card Type | Network Interface Card |
| Maximum Onboard Memory | 1280KB |
| Boot ROM | Not available |
| Network Transfer Rate | 9.6Kbps, 19.2Kbps, 93.75Kbps, 187.5Kbps, 500Kbps, 750Kbps, 1.5Mbps, 3Mbps, 6Mbps, 12Mbps |
| Topology | Unidentified |
| Wiring Type | Unidentified |
| Data Bus | PC/104 (16-bit) |

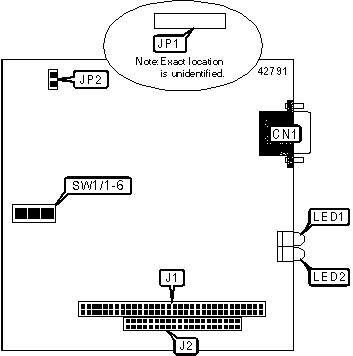

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Pheonix connector | CN1 |
PC/104 16-bit connector | J2 |
| PC/104 8-bit connector | J1 |
Shared interrupt header | JP1 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Flash write enabled | JP2 | Closed |
| Flash write disabled | JP2 | Open | |
BASE I/O ADDRESS SELECTION |
||||||
| Setting | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 200h | On | On | On | On | On | On |
| 208h | On | On | On | On | On | Off |
| 210h | On | On | On | On | Off | On |
| 218h | On | On | On | On | Off | Off |
| 220h | On | On | On | Off | On | On |
| 600h | Off | On | On | On | On | On |
| 6D8h | Off | Off | Off | On | Off | Off |
| 6E0h | Off | Off | Off | Off | On | On |
| 6E8h | Off | Off | Off | Off | On | Off |
| 6F0h | Off | Off | Off | Off | Off | On |
| 6F8h | Off | Off | Off | Off | Off | Off |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Function |
LED1 |
Red |
On |
Error has occurred |
| LED1 | Red | Off | No error has occurred |
| LED2 | Red | On | Bit is 0 in an 8-bit sequential error code |
| LED2 | Green | On | Bit is 1 in an 8-bit sequential error code |
| LED2 | Red/green | Off | No error has occurred |
| Note: Most LED states are dependent on software. | |||
