B & B ELECTRONICS
485HSPR
| Card Type | Transceiver |
| Maximum Transfer Rate | 115.2Kbps |
| Topology | Star |
| Data Bus | External |

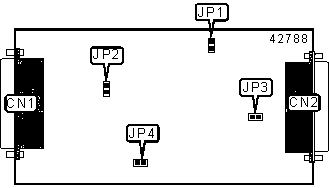

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| DB-25 male port (RS-422/485) | CN1 |
DB-25 female port (RS-232) | CN2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Echo enabled | JP2 | Open |
| Echo disabled | JP2 | Closed | |
| Note: Echo should be enabled for RS-422 and RS-485 4 wire modes. Echo should be disabled for RS-485 2 wire mode. | |||
TRANSCEIVER CONTROL SELECTION |
||||
Setting |
JP1 | JP3 | JP4 | |
Transceiver is always enabled |
Closed | Open | Open | |
RTS controls transceiver |
Open | Closed | Open | |
Send Data Circuit controls transceiver |
Open | Open | Closed | |
