PATTON ELECTRONICS COMPANY

2086F, 2086F/230, 2086M, 2086M/230
Card Type Transceiver
Maximum Transfer Rate 115.2Kbps
Topology Star, Daisy-Chain
Wiring Type Shielded twisted pair
Unshielded twisted pair
Data Bus External

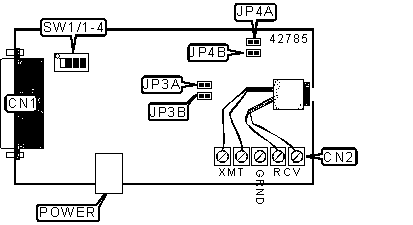

CONNECTIONS

Function

Label

Function

Label

DB-25 port (RS-232)

CN1

Terminal block (RS-485)

CN2


USER CONFIGURABLE SETTINGS

Function

Label

Position

» Factory configured - do not alter SW1/3 Off
» Full duplex mode enabled JP4A Open
  Half duplex mode enabled JP4A Closed
» Impedance selection 12k Ohm JP4B Open
  Impedance selection 120 Ohm JP4B Closed


TRANSMITTER CONTROL SELECTION

Setting

 SW1/1 SW1/2 SW1/4


RTS controls transmitter

 On Off Off


DTR controls transmitter

 Off On Off
»

Transmitter is always enabled

 Off Off On


WIRING SELECTION

Setting

 JP3A JP3B
»

4 wire mode

 Open Open


2 wire mode

 Closed Closed

Note:  If 2 wire mode is selected, JP4A must be set to closed.


MISCELLANEOUS TECHNICAL NOTES

Models 2086M and 2086M/230 have male DB-25 ports.  Models 2086F and 2086F/230 have female BD-25 ports.  Models 2086M/230 and 2086F/230 are international models.
