STANDARD MICROSYSTEMS CORPORATION
ETHERPOWER II 10/100 SMC 9432 FTX
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Available |
| Network Transfer Rate | 10/100Mbps |
| Topology | Peer-to-peer, Star |
| Wiring Type | Fiber, UTP |
| Data Bus | Intel 32-bit PCI |

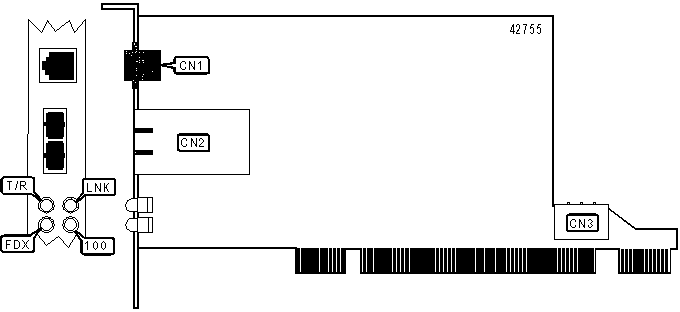

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| RJ-45 UTP connector | CN1 |
Wake-on-LAN connector | CN3 |
| Fiber optic connector (SC) | CN2 |
||
DIAGNOSTIC LEDS |
|||
LED |
Color |
Status |
Condition |
1 00 |
Green | On |
Data is being transmitted at 100Mbps |
| 100 | Green |
Off |
Data is not being transmitted at 100Mbps |
F DX |
A mber |
On |
Network connection is operating at full-duplex mode |
| FDX | Amber | Off |
Network connection is not operating at full-duplex mode |
L NK |
Green | On |
10BaseT, 100Base-TX or 100Base-FX is being linked |
| LNK | Green |
Off |
10BaseT, 100Base-TX or 100Base-FX is not being linked |
T /R |
A mber |
Blinking |
Data is being transmitted/received |
| T/R | Amber | Off |
Data is not being transmitted/received |
