STANDARD MICROSYSTEMS CORPORATION
EZ CARD 10 SMC 1660BT
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Not available |
| Network Transfer Rate | 10Mbps |
| Topology | Star |
| Wiring Type | Unshielded
twisted pair RG-58A/U 50ohm or RG-58C/U coaxial |
| Data Bus | 32-bit PCI |

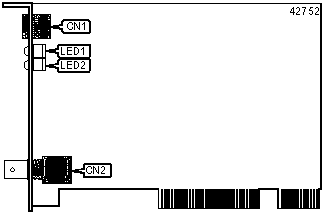

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| RJ-45 UTP connector | CN1 |
RG-58A/U or RG-58C/U connector | CN2 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
G reen |
On |
N etwork connection is good |
LED1 |
Green |
Off |
N etwork connection is broken |
LED2 |
G reen |
Blinking |
Data is being received |
LED2 |
G reen |
Off |
Data is not being received |
