KATRON TECHNOLOGIES, INC.
KF-C16 (10/100), KF-C32 (10/100)
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Maximum Onboard Memory | 64KB |
| Boot ROM | Not available |
| Network Transfer Rate | 100Mbps/10Mbps |
| Topology | Linear Bus, Star |
| Wiring Type | Unshielded twisted pair |
| Data Bus | PCMCIA Type II/ PCMCIA Type III |

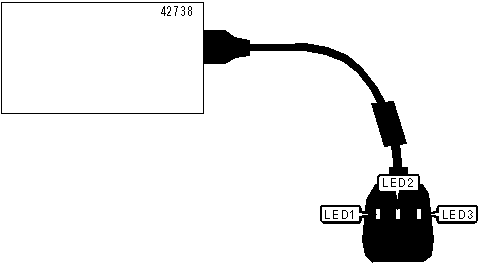

DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
L ED1 |
Yellow | On |
Data is being transmitted/received at 100Mbps |
| LED1 | Yellow | Off |
Data is being transmitted/received at 10Mbps |
| LED2 | Yellow | On |
A ctivity indication |
| LED2 | Yellow | Off |
Link indication |
| LED3 | Yellow | On |
Data is being transmitted/received at full duplex |
| LED3 | Yellow | Off |
Data is being transmitted/received at half duplex |
