GESPAC
XSBLAN-1A
| Card Type | Network Interface Card |
| NIC Type | Ethernet controller |
| Maximum Onboard Memory | 64KB SRAM |
| Boot ROM | Not available |
| Network Transfer Rate | 10Mbps |
| Topology | Linear Bus, Star |
| Data Bus | Propietary |

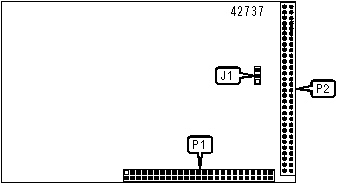

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Bus expansion connector | P 1 |
I/O to AUI connection | P 2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | 5v DC power | J1 | Pins 1 & 2 closed |
| 12v DC power | J1 | Pins 2 & 3 closed | |
