SBE, INC.
ML-ENET
| Card Type | Interface module |
| Chip Set | Proprietary |
| I/O Options | Ethernet connectors (4): AUI connectors (2) and 10BaseT connectors (2) |
| Maximum Modem Rate | 2048Kbps |
| Topology | Linear Bus, Star |
| Data Modulation Protocol | Unidentified |

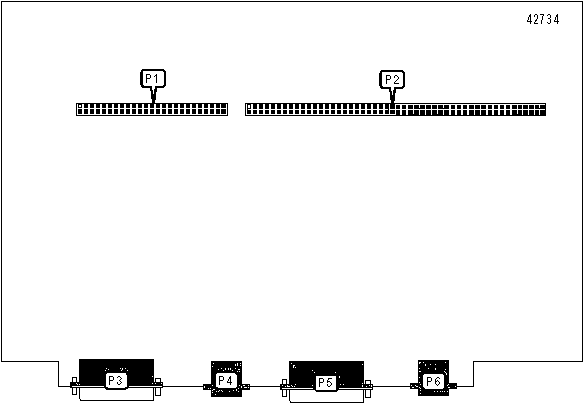

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Mezzanine LIM 50-pin connector | P 1 |
AUI connector 1 | P4 |
| Mezzanine LIM 100-pin connector | P2 | 10BaseT connector 2 | P5 |
| 10BaseT connector 1 | P3 | AUI connector 2 | P6 |
