SPIDER COMMUNICATIONS, INC.
SL8/16E-A
| NIC Type | Ethernet |
| Network Transfer Rate | 10Mbps |
| Data Bus | 16-bit ISA |
| Topology | Linear Bus, Star |
| Wiring Type | Unshielded
twisted pair RG-58A/U 50ohm coaxial AUI transceiver DB-15 port |
| Boot ROM | Available |

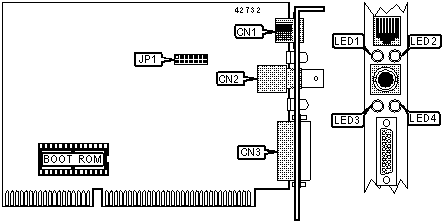

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Unshielded twisted pair port | CN1 |
AUI transceiver DB-15 port | CN3 |
| RG-58A/U connector | CN2 |
||
USER CONFIGURABLE SETTINGS |
|||
| Function | Label | Position | |
| RJ45 and AUI-SL810 | JP1 | Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12 closed | |
| RJ45 and AUI-SL830 | JP1 | Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12, 13 & 14 closed | |
DIAGNOSTIC LED(S) |
||
LED |
Status |
Condition |
LED1 |
On |
Data is being transmitted |
LED1 |
Off |
Data is not being transmitted |
LED2 |
On |
Network collision is detected |
LED2 |
Off |
Network collision is not detected |
LED3 |
On |
Data is being received |
LED3 |
Off |
Data is not being received |
LED4 |
On |
Network connection is good |
LED4 |
Off |
Network connection is broken |
