ETHERNET 2000T
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Available |
| Network Transfer Rate | 10Mbps |
| Topology | Star |
| Wiring Type | Unshielded twisted pair |
| Data Bus | 16-bit ISA |

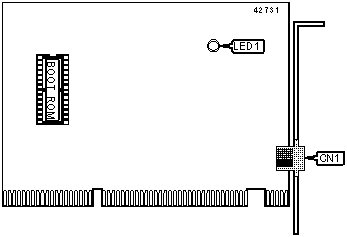

CONNECTIONS |
|
Function |
Label |
| RJ-45 UTP connector | CN1 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Unidentified |
On |
Network connection is good |
LED1 |
Unidentified |
Off |
Network connection is broken |
