EISALINK
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Not available |
| Network Transfer Rate | 10Mbps |
| Topology | Linear Bus, Star |
| Wiring Type | AUI transceiver
via DB-15 port RG-58A/U 50ohm coaxial |
| Data Bus | 32-bit EISA |

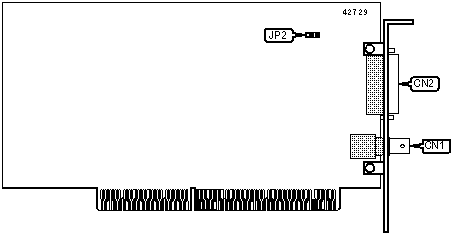

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| RJ-45 UTP connector | CN1 |
RG-58A/U connector | CN 2 |
| USER CONFIGURABLE SETTINGS | |||
Function |
Label |
Position |
|
| » | Thin cable selection | JP2 | Pins 1 & 2 closed |
| Thick cable selection | JP2 | Pins 2 & 3 closed | |
