MACROMATE CORPORATION
MFN-660TX
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Available |
| Network Transfer Rate | 100Mbps/10Mbps |
| Topology | Star |
| Wiring Type | Shielded twisted pair |
| Data Bus | 32-bit PCI |

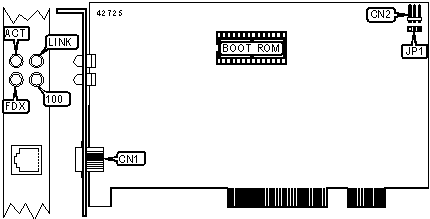

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| RJ-45 STP connector | CN1 |
Wake connector | CN2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Wake signal at an active low level | JP1 |
Pins 1 & 2 closed |
|
| » | Wake signal at an active high level | JP1 |
Pins 2 & 3 closed |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LINK |
Unidentified |
On |
Data is being transmitted/received |
LINK |
Unidentified |
Off |
Data is not being transmitted/received |
ACT |
Unidentified |
Blinking |
Network activity |
ACT |
Unidentified |
Off |
No Network activity |
100 |
Unidentified |
On |
Data speed at 100 Mbps |
100 |
Unidentified |
Off |
Data speed at 10 Mbps |
FDX |
Unidentified |
On |
Full-duplex transmission |
FDX |
Unidentified |
Off |
Half-duplex transmission |
