SPIDER COMMUNICATIONS, INC.
SL-615
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Available |
| Network Transfer Rate | 10Mbps |
| Topology | Linear Bus, Star |
| Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
| Data Bus | 16-bit ISA |

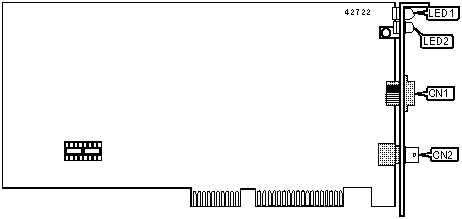

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| RJ-45 UTP connector | CN1 |
RG-58A/U connector | CN2 |
DIAGNOSTIC LEDS |
|||
LED |
Color |
Status |
Condition |
LED1 |
Green |
On |
Network connection established |
LED2 |
Yellow |
Off |
Data is being transmtted/received |
