COMPU-SHACK PRODUCTION, GMBH
CS-FASTLINE-II PCI UTP QUATTRO
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Not available |
| Network Transfer Rate | 10/100Mbps (20/200Mbps full duplex) |
| Topology | Star |
| Wiring Type | Unshielded twisted pair |
| Data Bus | 32-bit PCI |

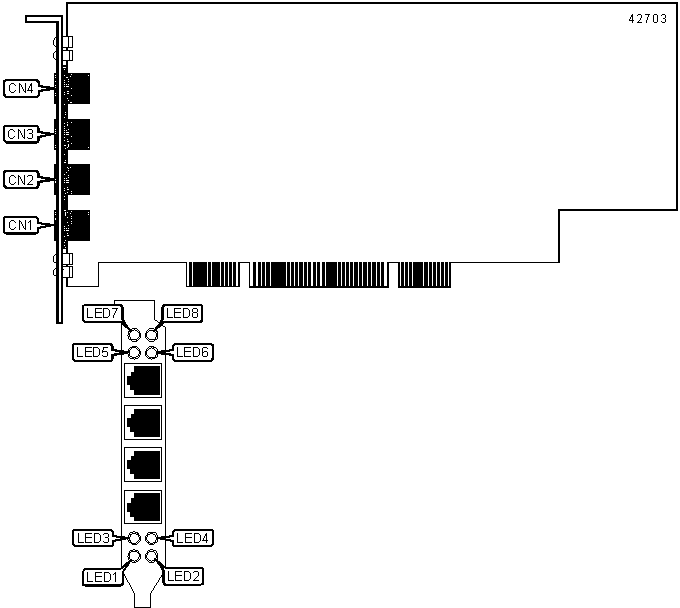

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| RJ-45 UTP connector | CN1 |
RJ-45 UTP connector | CN 3 |
| RJ-45 UTP connector | CN2 |
RJ-45 UTP connector | CN4 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Green | On |
Network connection is good (CN1) |
LED1 |
Green | Off |
Network connection is broken (CN1) |
LED2 |
Yellow | Blinking | Data is being transmitted/received (CN1) |
LED2 |
Yellow | Off | Data is not being transmitted/received (CN1) |
LED 3 |
Green | On |
Network connection is good (CN2) |
LED 3 |
Green | Off |
Network connection is broken (CN2) |
LED 4 |
Yellow | Blinking | Data is being transmitted/received (CN2) |
LED 4 |
Yellow | Off | Data is not being transmitted/received (CN2) |
LED 5 |
Green | On |
Network connection is good (CN3) |
LED 5 |
Green | Off |
Network connection is broken (CN3) |
LED 6 |
Yellow | Blinking | Data is being transmitted/received (CN3) |
LED 6 |
Yellow | Off | Data is not being transmitted/received (CN3) |
LED 7 |
Green | On |
Network connection is good (CN4) |
LED 7 |
Green | Off |
Network connection is broken (CN4) |
LED 8 |
Yellow | Blinking | Data is being transmitted/received (CN4) |
LED 8 |
Yellow | Off | Data is not being transmitted/received (CN4) |
