COMPU-SHACK PRODUCTION, GMBH
CS-FASTLINE-II PCI UTP
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Not available |
| Network Transfer Rate | 10/100Mbps |
| Topology | Star |
| Wiring Type | Unshielded twisted pair |
| Data Bus | 32-bit PCI |

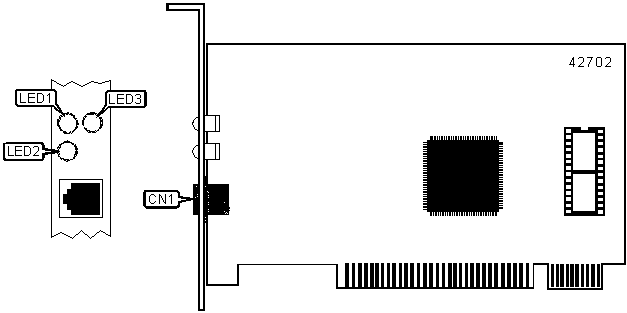

CONNECTIONS |
|
Function |
Label |
| RJ-45 UTP connector | CN1 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| LED1 | Green | On | Data transfer rate is 10 MBit/s |
| LED1 | Green | Off | Data transfer rate is not 10 MBit/s |
LED 2 |
Yellow | On |
Network connection is good |
| LED2 | Yellow | Blinking | Data is being transmitted/received |
LED 2 |
Yellow | Off |
Network connection is broken |
LED 3 |
Green | O n |
Data transfer rate is 100 MBit/s |
LED 3 |
Green | Off |
Data transfer rate is not 100 MBit/s |
