COMPU-SHACK PRODUCTION, GMBH
CS-FASTLINE-II PCI FO (LCF/DUPLEX-SC), CS-FASTLINE-II PCI FO (MMF/DUPLEX-SC), CS-FASTLINE-II PCI FO (SMF/DUPLEX-SC)| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Not available |
| Network Transfer Rate | 10/100Mbps |
| Topology | Star |
| Wiring Type | Fiber optic cable |
| Data Bus | 32-bit PCI |

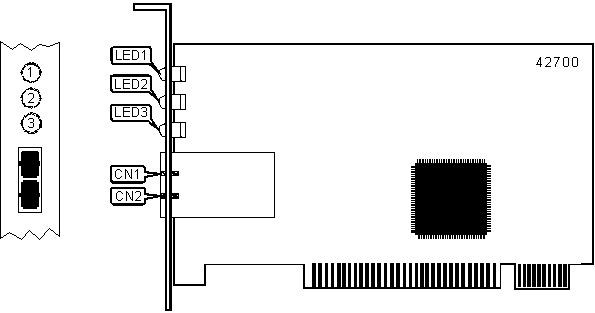

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Fiber optic connector (SC) | CN1 |
Fiber optic connector (SC) | CN 2 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Green | On |
Network connection is good |
LED1 |
Green | Off |
Network connection is broken |
LED2 |
Yellow | O n |
M ode is full duplex |
LED2 |
Yellow | Off |
M ode is not full duplex |
| LED3 | Green | Blinking | Data is being transmitted/received |
| LED3 | Green | Off | Data is not being transmitted/received |
