PATTON ELECTRONICS COMPANY
2094
| Card Type | Transceiver |
| NIC Type | Unidentified |
| Boot ROM | Unidentified |
| Network Transfer Rate | 2.048Mbps |
| Topology | Unidentified |
| Wiring Type | STP |
| Data Bus | External |

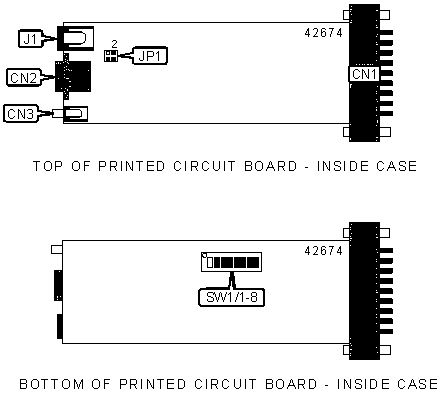

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| DTE connector | CN1 |
Software configuration connector | CN3 |
| RJ-48C STP connector | CN2 |
DC power connector | J1 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Power supplied through 5V DC power jack | JP1 | Pins 1 & 3 closed |
| Power supplied through DTE connector | JP1 | Pins 3 & 4 closed | |
| » | Line coding select HDB3 | SW1/1 | Off |
| Line coding select AMI | SW1/1 | On | |
| » | CAS Multiframe disabled | SW1/2 | Off |
| CAS Multiframe enabled | SW1/2 | On | |
| » | CRC-4 Multiframe disabled (framed mode only) | SW1/3 | Off |
| CRC-4 Multiframe enabled (framed mode only) | SW1/3 | On | |
| » | Network clock mode selected (framed mode only) | SW1/4 | Off |
| Internal clock mode selected (framed mode only) | SW1/4 | On | |
| Note: CRC-4 Multiframe is for error control purposes. | |||
CLOCK MODE SELECTION (UNFRAMED MODE) |
|||
Clock Mode |
SW1/3 |
SW1/4 |
|
| » | Network | Off | Off |
| Internal | Off | On | |
| External | On | On | |
| Network | On | Off | |
DTE SPEED SELECTION |
|||||
Speed |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 | |
| » | Clear channel |
Off |
Off |
Off |
Off |
64Kbps |
On | Off | Off | Off | |
128Kbps |
Off | On | Off | Off | |
192Kbps |
On | On | Off | Off | |
256Kbps |
Off | Off | On | Off | |
384Kbps |
On | Off | On | Off | |
512Kbps |
Off | On | On | Off | |
640Kbps |
On | On | On | Off | |
768Kbps |
Off | Off | Off | On | |
1024Kbps |
On | Off | Off | On | |
1280Kbps |
Off | On | Off | On | |
1536Kbps |
On | On | Off | On | |
1600Kbps |
Off | Off | On | On | |
1920Kbps |
On | Off | On | On | |
1984Kbps |
Off | On | On | On | |

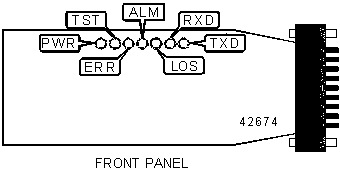

DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
TXD |
Green |
On |
Transmitting ones only |
TXD |
Green |
Off |
Transmitting zeros only |
RXD |
Green |
On |
Receiving ones only |
RXD |
Green |
Off |
Receiving zeros only |
LOS |
Red |
On |
Network connection is broken |
LOS |
Red |
Off |
Network connection is good |
ALM |
Red |
On |
Alarm condition - loss of sync, loss of frame, AIS or RAI |
ALM |
Red |
Off |
No alarm condition |
ERR |
Red |
On |
Error has occurred |
ERR |
Red |
Blinking |
Error insertion is on and no errors present |
ERR |
Red |
Off |
No errors have occurred |
TST |
Yellow |
On |
Operating in test mode |
TST |
Yellow |
Off |
Not operating in test mode |
PWR |
Green |
On |
Power is on |
PWR |
Green |
Off |
Power is off |
| Note:
TXD & RXD LEDs operate in active DS0 channels only. Note: In unframed mode, LOS LED monitors the transmit clock. |
|||
MISCELLANEOUS TECHNICAL NOTES |
The
2094 converts V.35 to E1 & fractional E1 interfaces. |
