KATRON TECHNOLOGIES, INC.
KF-230 TX/2
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Available |
| Network Transfer Rate | 100Mbps/10Mbps |
| Topology | Star |
| Wiring Type | Unshielded twisted pair |
| Data Bus | 32-bit PCI |

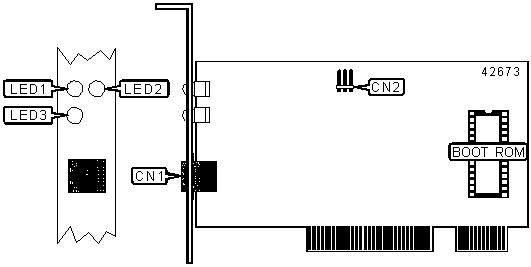

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| UTP RJ-45 connector | C N1 |
Wake-on-LAN connector | C N2 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED 1 |
Unidentified |
O n |
Network connection at 10Mbps |
LED 1 |
Unidentified | Off |
No network connected at 10Mbps |
LED 2 |
Unidentified | On |
Network connection at 100Mbps |
LED 2 |
Unidentified | Off |
No network connection at 100Mbps |
LED3 |
Unidentified | B linking |
D ata is being transmitted or received |
LED3 |
Unidentified | Off |
N o data is being transmitted or received |
