STANDARD MICROSYSTEMS CORPORATION
ETHERPOWER II SMC9432BTX
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Available |
| Network Transfer Rate | 100Mbps/10Mbps |
| Topology | Star, Peer-Peer |
| Wiring Type | Unshielded
twisted pair RG-58A/U 50ohm coaxial |
| Data Bus | 32-bit PCI |

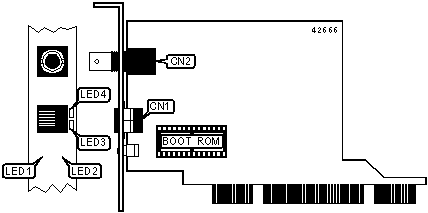

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| RJ-45 UTP connector | CN1 |
RG-58A/U connector | CN2 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Yellow |
On |
Operating in full-duplex mode |
LED1 |
Yellow |
Off |
Operating in half-duplex mode |
LED2 |
Green |
On |
Operating at 100Mbps |
LED2 |
Green |
Off |
Operating at 10Mbps |
| LED3 | Green | On | Network connection is good |
| LED3 | Green | Off | Network connection is broken |
| LED4 | Yellow | Blinking | Data is being transmitted/received |
| LED4 | Yellow | Off | Data is not being transmitted/received |
