1111-00
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Not available |
| Network Transfer Rate | 10Mbps |
| Topology | Star, Peer-Peer |
| Wiring Type | Unshielded
twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
| Data Bus | 16-bit ISA |

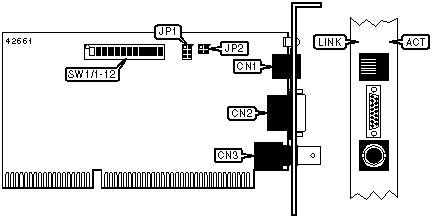

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| RJ-45 UTP connector | CN1 |
RG-58A/U connector | CN3 |
| AUI transceiver via DB-15 | CN2 |
||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Factory configured - do not alter | SW1/8 | Unidentified |
| » | Factory configured - do not alter | SW1/9 | Unidentified |
| » | Factory configured - do not alter | SW1/10 | Unidentified |
| » | Factory configured - do not alter | SW1/11 | Unidentified |
| » | Factory configured - do not alter | SW1/12 | Unidentified |
CONFIGURATION MODE SELECTION |
|||
Setting |
JP1/5 & 6 | JP1/3 & 4 | JP1/1 & 2 |
Plug and Play mode |
Closed | Open | Open |
Software mode |
Open | Closed | Open |
Hardware mode |
Open | Open | Closed |
PORT SELECTION |
||
Setting |
JP2/1 & 2 | JP2/3 & 4 |
TP/BNC auto-sense enabled |
Open | Closed |
AUI port enabled |
Closed | Open |
INTERRUPT SELECTION |
|||
IRQ |
SW1/1 | SW1/2 | SW1/3 |
| 2/9 | Off | Off | Off |
| 3 | Off | Off | On |
| 4 | Off | On | Off |
| 5 | Off | On | On |
| 10 | On | Off | Off |
| 11 | On | Off | On |
| 12 | On | On | Off |
| 15 | On | On | On |
BASE I/O ADDRESS SELECTION |
||||
Setting |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
200H |
Off | On | Off | Off |
| 220H | Off | On | Off | On |
| 240H | Off | On | On | Off |
| 260H | Off | On | On | On |
| 280H | On | On | Off | Off |
| 2A0H | On | On | Off | On |
| 2C0H | On | On | On | Off |
| 2E0H | On | On | On | On |
300H |
Off | Off | Off | Off |
| 320H | Off | Off | Off | On |
| 340H | Off | Off | On | Off |
| 360H | Off | Off | On | On |
| 380H | On | Off | Off | Off |
| 3A0H | On | Off | Off | On |
| 3C0H | On | Off | On | Off |
| 3E0H | On | Off | On | On |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
ACT |
Green |
Blinking |
Data is being transmitted/received |
ACT |
Green |
Off |
Data is not being transmitted/received |
LINK |
Green |
On |
Network connection is good |
LINK |
Green |
Off |
Network connection is broken |
