LANCAST
1120-01
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Not available |
| Network Transfer Rate | 100Mbps/10Mbps |
| Topology | Star, Peer-Peer |
| Wiring Type | Unshielded twisted pair |
| Data Bus | 32-bit PCI |

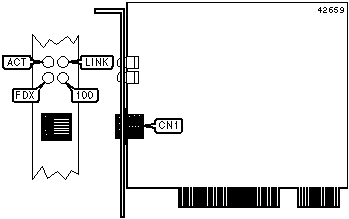

CONNECTIONS |
|
Function |
Label |
| RJ-45 UTP connector | CN1 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
100 |
Green |
On |
Card is operating at 100Mbps |
100 |
Green |
Off |
Card is operating at 10Mbps |
ACT |
Green |
Blinking |
Data is being received/transmitted |
ACT |
Green |
Off |
Data is not being received/transmitted |
FDX |
Green |
On |
Card is operating in full-duplex mode |
FDX |
Green |
Off |
Card is operating in half-duplex mode |
LINK |
Green |
On |
Network connection is good |
LINK |
Green |
Off |
Network connection is broken |
