LANCAST
1130-05
| Card Type | Network Interface Card |
| NIC Type | Ethernet |
| Boot ROM | Not available |
| Network Transfer Rate | 100Mbps/200Mbps |
| Topology | Star, Peer-Peer |
| Wiring Type | Fiber optic cable |
| Data Bus | 32-bit PCI |

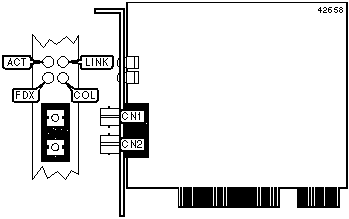

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Fiber optic connector (ST) RX | CN1 |
Fiber Optic connector (ST) TX | CN2 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
ACT |
Green |
Blinking |
Data is being transmitted/received |
ACT |
Green |
Off |
Data is not being transmitted/received |
COL |
Green |
Blinking |
Data collisions are being detected |
COL |
Green |
Off |
Data collisions are not being detected |
FDX |
Green |
On |
Card is operating at full-duplex mode |
FDX |
Green |
Off |
Card is operating at half-duplex mode |
LINK |
Green |
On |
Network connection is good |
LINK |
Green |
Off |
Network connection is broken |
