BUS-TECH, INC.
PCI ESCON ADAPTER
|
Card Type |
Network Interface Card |
|
NIC Type |
ESCON, TCP/IP, Token Ring |
|
Network Transfer Rate |
Unidentified |
|
Topology |
Star, Ring |
|
Wiring Type |
ESCON connector |
|
Data Bus |
32-bit PCI |
|

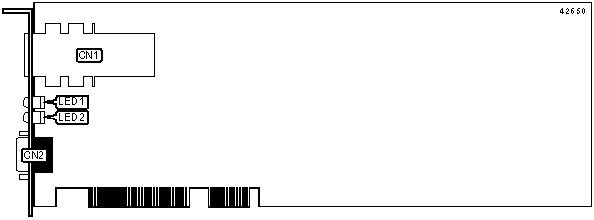

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
ESCON connector |
CN1 |
Serial port |
CN2 |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
Off |
Power is off |
|
LED1 |
Yellow |
On |
Self test in progress |
|
LED1 |
Red |
On |
Self test failed |
|
LED1 |
Green |
On |
Self test completed successfully |
|
LED2 |
Green |
Off |
Power is off |
|
LED2 |
Orange |
On |
Emulation loaded, network connection is broken |
|
LED2 |
Red |
On |
Emulation is not loaded |
|
LED2 |
Green |
On |
Network connection is good |
