INTERPHASE CORPORTATION
WA-C32X CDDI EISA SAS
|
Card Type |
Network Interface Card |
|
NIC Type |
CDDI |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
Unidentified |
|
Topology |
Ring |
|
Wiring Type |
Unshielded twisted pair, Shielded twisted pair |
|
Data Bus |
32-bit EISA |
|

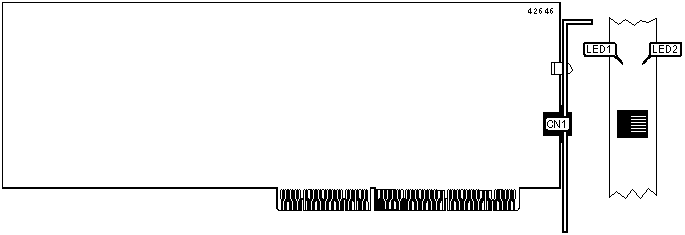

CONNECTIONS |
|
|
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network card is functioning |
|
LED1 |
Red |
On |
Failed diagnostic, not functioning |
|
LED2 |
Green |
On |
Network connection is good |
|
LED2 |
Green |
Off |
Network connection is broken |
