INTERPHASE CORPORTATION
WA-C32X FDDI EISA DAS
|
Card Type |
Network Interface Card |
|
NIC Type |
FDDI |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
Unidentified |
|
Topology |
Ring |
|
Wiring Type |
Fiber optic cable |
|
Data Bus |
32-bit EISA |
|

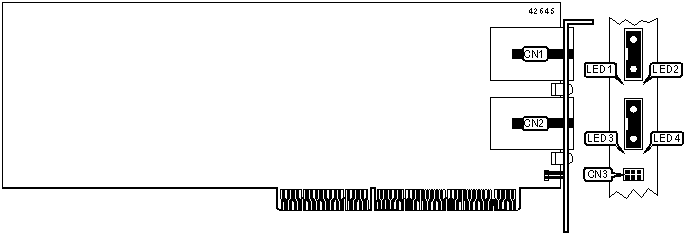

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Fiber optic connector (MIC) |
CN1 |
Bypass switch connector |
CN3 |
|
Fiber optic connector (MIC) |
CN2 |
|
|
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
RINGOP/B on network card is functioning |
|
LED1 |
Red |
On |
RINGOP/B failed diagnostic, not functioning |
|
LED3 |
Green |
On |
RINGOP/A on network card is functioning |
|
LED3 |
Red |
Off |
RINGOP/A failed diagnostic, not functioning |
|
DIAGNOSTIC LED(S) (CON'T) |
||||
|
LED2 Color |
LED2 Status |
LED4 Color |
LED4 Status |
Condition |
|
Green |
Off |
Green |
Off |
Network ring is not working |
|
Green |
Off |
Green |
On |
Staition is operating in WRAP_B and SAS, RING A is not connected to DAS |
|
Green |
Off |
Orange |
On |
Network ring is not working, station connected to PHY B is attempting to connect |
|
Green |
On |
Green |
Off |
Station is operating in WRAP_A. RING B is not connected |
|
Green |
On |
Green |
On |
Network ring is working. Station is in THRU mode. |
|
Green |
On |
Orange |
On |
Station is operating in WRAP_A, station connected to PHY B is attempting to connect |
|
Orange |
On |
Green |
Off |
Network ring is not working, station at PHY A is attempting to connect |
|
Orange |
On |
Green |
On |
Station is operating in WRAP_B. Station at PHY A is attempting to connect |
|
Orange |
On |
Orange |
On |
Network ring is not working. Stations at PHY A and PHY B are attempting to connect |
