FORE SYSTEMS, INC.
FORERUNNER HE-622 SC
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet, Token Ring |
|
Maximum Onboard Memory |
2MB |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
622Mbps |
|
Topology |
Star, Ring |
|
Wiring Type |
Fiber optic cable |
|
Data Bus |
64-bit PCI |
|

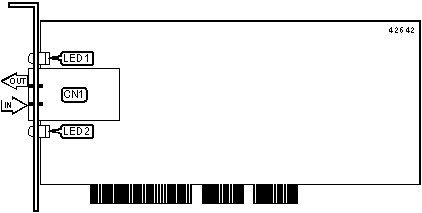

CONNECTIONS |
|
|
Function |
Label |
|
Fiber optic connector (SC) |
CN1 |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Data is being received |
|
LED1 |
Green |
Off |
No data is being received |
|
LED1 |
Red |
On |
Network connection is broken |
|
LED2 |
Green |
On |
Data is being transmitted |
|
LED2 |
Green |
Off |
No data is being transmitted |
|
LED2 |
Red |
On |
Error detected from receiving device |
