CANOGA PERKINS CORPORATION
8829 UTP TO FIBER OPTIC MEDIA CONVERTER
|
Card Type |
Ethernet Transceiver |
|
NIC Type |
Unidentified |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Star, Peer-Peer |
|
Wiring Type |
Unshielded twisted pair Fiber optic cable |
|
Data Bus |
External |
|

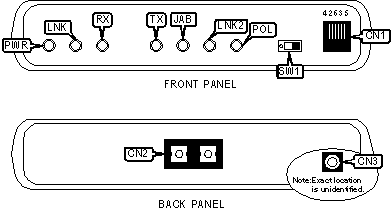

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
Power connector |
CN3 |
|
Fiber optic connector (ST) |
CN2 |
||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
| » |
Normal operation mode |
SW1 |
On |
|
Crossover operation mode |
SW1 |
Off |
|
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
JAB |
Unidentifed |
Off |
Data being received on fiber port normally |
|
JAB |
Unidentifed |
On |
Data is being blocked from fiber port |
|
LNK |
Green |
On |
Fiber network connection is good |
|
LNK |
Green |
Off |
Fiber network connection is broken |
|
LNK2 |
Green |
On |
UTP link is good |
|
LNK2 |
Green |
Off |
UTP link is broken |
|
POL |
Yellow |
On |
UTP is receiving polarity-reversed data |
|
POL |
Yellow |
Off |
UTP is receiving normal data |
|
PWR |
Green |
On |
Power is on |
|
PWR |
Green |
Off |
Power is off |
|
RX |
Unidentified |
On/Blinking |
Data is being received on fiber port |
|
RX |
Unidentified |
Off |
Data is not being received on fiber port |
|
TX |
Unidentified |
On/Blinking |
Data is being transmitted on fiber port |
|
TX |
Unidentified |
Off |
Data is not being transmitted on fiber port |
